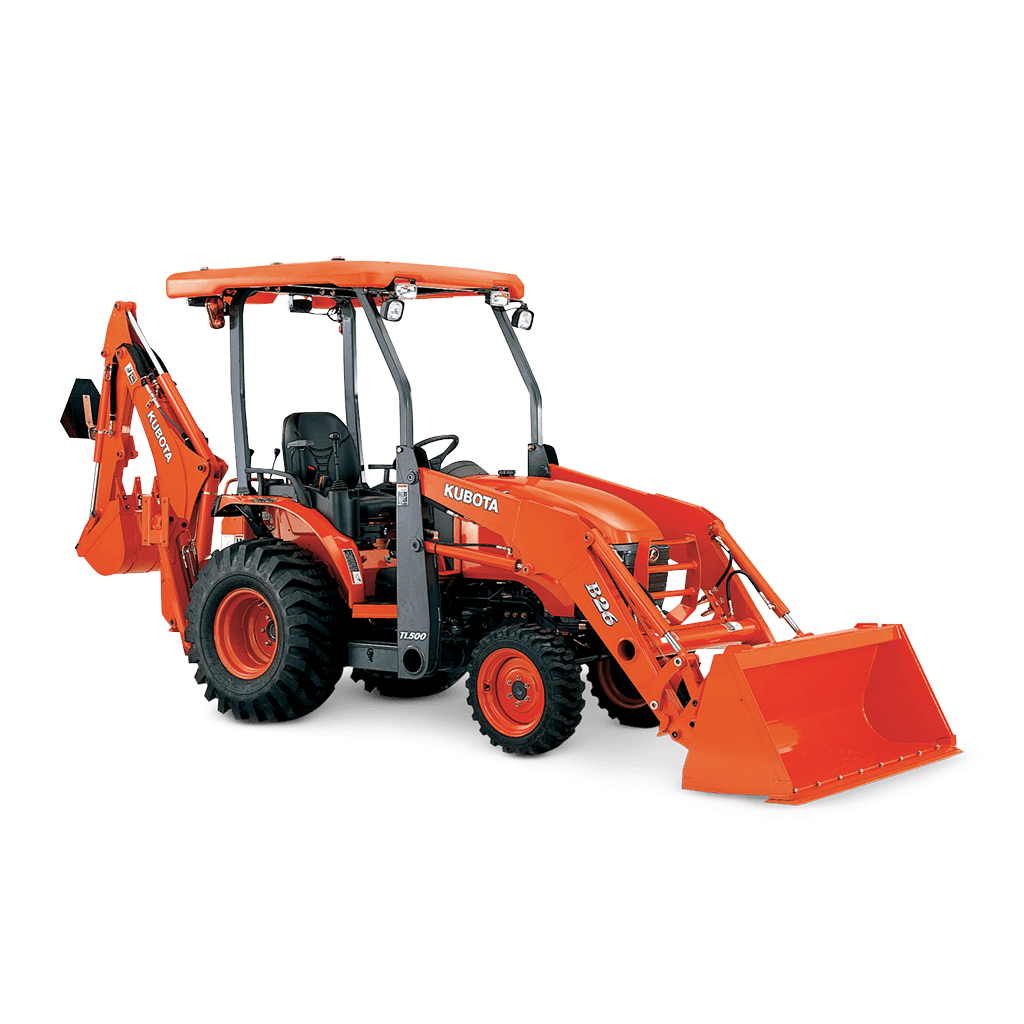

B26

Tractor Loader Backhoes

  • Warranty 2 year

Features

Mechanical 2-lever quick coupler

Kubota’s 2-lever quick coupler lets you quickly and easily attach and detach front implements. With the optional hydraulic 2-lever quick coupler, you won’t even need to leave your seat. Simply press two buttons to release the levers, back away from the now detached implement, move into the next implement, and press the buttons to re-engage the levers. Changing implements couldn’t be easier!

Category I and II 3-point hitch (optional)

Do even more by attaching any of a wide array of rear-mounted implements to the Category I and II 3-point hitch. Attachment is quick and easy, and the hitch provides astonishing lift capacity. (B26/L47 are Category I only.)

Flip-over stabilizer pad

Switch from road-use side to steel anchor by simply rotating the unit by hand. No tools needed!

Independent PTO

Get even more work done by attaching a wide range of PTO-driven implements, including rotary tillers, post hole diggers, snow blowers and rear-mounted mowers. The 540 RPM PTO is hydraulic-independent, letting you engage and disengage the PTO without stopping the tractor.

Transporting this workhorse is easy

Easy and fast. Even with both loader and backhoe attached, the compact B26 can be loaded on a 10,000-lb. GVWR rated trailer pulled by a 3/4-ton pickup truck, letting you quickly and efficiently move to the next job site.

Specs

Model
Model name
B26TLB
Engine
Air pre-cleaner
Single element
Rated engine speed
2800 rpm / 2800 rpm
Engine gross horsepower @ rpm
24.3 HP / 18.1 kW
Engine net horsepower @ rpm
23.1 HP / 17.2 kW
PTO horsepower
19.5 HP / 14.5 kW
Displacement
68.5 cu. in. / 1123 cc
Emission certification
EPA Final Tier 4
Fuel tank capacity
8.2 gal / 31 l
Number of
Cylinders
3
Power take off (PTO)
Type
Independent
Rear
PTO/engine speed
540 rpm / 540 rpm
Drive train/transmission
Max. traveling speed
11.1 mph / 17.8 km/h
Range gear shift
Seat side, left
Transmission type
HST (3 range)
Brake type
Wet disc
Differential lock - Rear axle
Standard
Number of
Speed
Infinite
Hydraulic system
3-Point hitch
Optional
Pump capacity
11.1 gpm / 42 l/min
Steering type
Hydrostatic
Llft control type
Position control
Standard
Lift capacity
24" behind lift point
1676 lb / 760 kg
Dimensions and weight
Wheelbase
62.2 in / 1581 mm
Standard tire size
Front
23 × 8.5–14 R4
Rear
12.4–16 R4
Tread width
Front
35.6 in / 905 mm
Rear
41.3 in / 1050 mm
Turning radius
Without brake
8.2 ft / 2.5 m
Weight
Power unit + 2 implements
4001 lb / 1815 kg
Safety equipment
Back up alarm
Optional
FOPS
Standard
Open Station
4 post
Other
Deck type
Full-floating ISO-mounted flat deck
Loader-integrated reinforced frame
Standard
Glow plug
Super glow
Reversible seat
Standard
Hard nose slanted hood
Standard
Horn
Optional
Tilt steering wheel
Standard
