Features
Get comfortable
Get the job done in a comfortable and fully adjustable seat. The armrests come standard and you can select between a suspension or air ride...

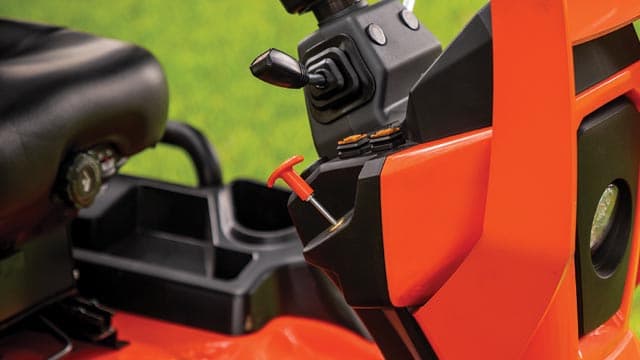

New parking brake
Secure your ride at the end of a productive day with ease. The new parking brake on the F10 is dash mounted and easier to...

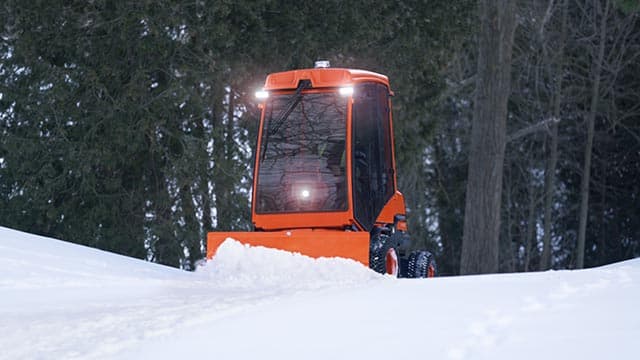

LED work light
The F10 is equipped with a powerful LED work light for better visibility in low light conditions so you have the ability to get the...

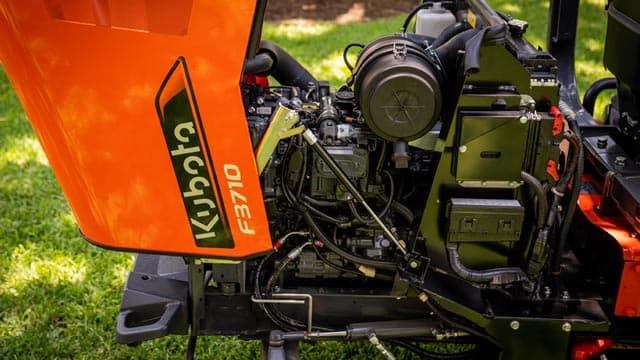

Easier maintenance points
It’s now easier to access important areas of the F10 for your daily check points. The air filter is on top of the engine for...

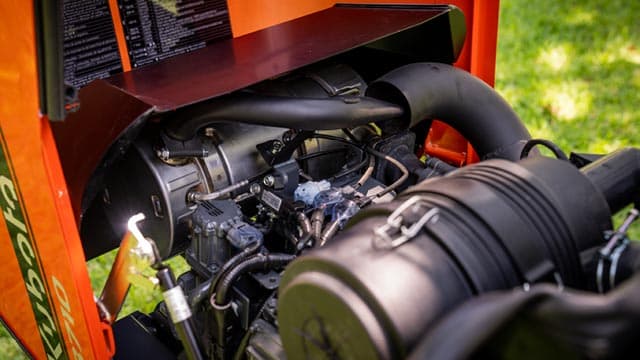

Dependable diesel engine
The F2510 and F2510E are powered by Kubota’s proven D1105 diesel engine with mechanical injection and an improved Three Vortex Combustion System for clean burning,...
Rear tie down hooks
If you need to transport your F10, it’s easier to secure it to a trailer thanks to tie down hooks found at the rear.

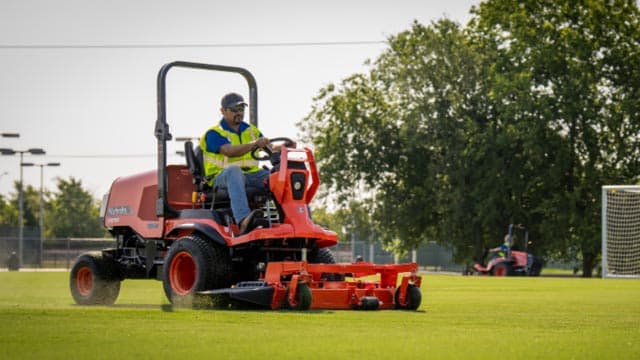

4WD and auto-assist 4WD
Auto-Assist 4WD works in forward and reverse, automatically controlling the drive loads on the wheels during turns to reduce turf wear and improve maneuverability. Full-time...
Go all season
The F10 can be put to work 24/7/365. You can switch from a front mower deck to a variety of attachments for spring and fall...

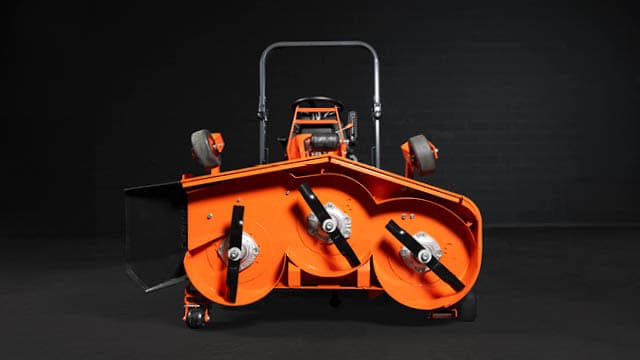

Flip-up mower deck
The mower deck tilts a full 90° to provide quick, safe access to the blades and underside for cleaning or servicing. This maintenance-friendly design helps...

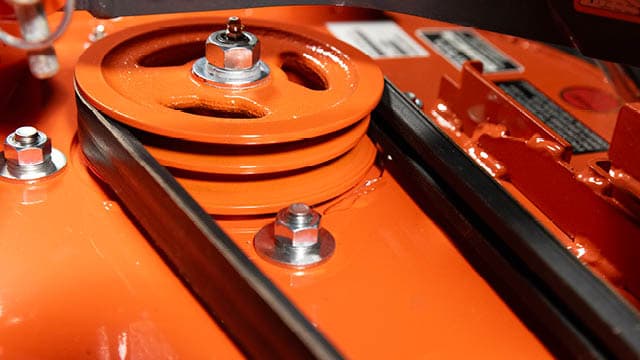

Heavy-duty fabricated mower deck
Built for long-lasting performance, the mower deck uses a double V-belt design with heavy-duty cast iron pulleys to deliver dependable operation season after season. Greasable...
Pedal-operated differential lock
All models are equipped with a pedal-operated differential lock to increase straight-line traction when mowing wet terrain or clearing snow.
F2510 Specs
Model nameF2510
Drive method4 WD
TypeHST (F2 / R2)
4WD - mode selectAuto-assist 4WD with dual acting overrunning clutch / locked (4WD)
Cruise controlOptional
ManufacturerKubota D1105
TypeLiquid-cooled diesel (3 cyl)
Engine gross power17.4 kW / 23.3 HP
Displacement1123 cc / 68.5000 cu. in.
Air cleaner
TypeDual element
Alternator12 V, 40A
Fuel tank capacity61 l / 16.1 gal
Forward20 km / h / 12.4 mph
Reverse11 km / h / 6.8 mph
Differential lockStandard
Turn assist brakeOptional
Brakes
SystemWet discs
Steering
TypeHydrostatic power
Tilt steering wheelStandard
Front24 × 12 - 12
Rear18 × 9.5 - 8
Front1063 mm / 41.9 in
Rear1020 mm / 40.2 in
Wheelbase1300 mm / 51.2 in
Overall length2450 mm / 98.5 in
Overall width1370 mm / 53.9 in
Overall height1985 mm / 78.1 in
Weight721 kg / 1590 lb
Ground clearance185 mm / 7.3 in
TypeIndependent live, Shaft drive
Revolution2545
ClutchWet multi discs, hydraulic
Lift systemHydraulic 2-point hitch
Tilt assistStandard
Weight transfer systemStandard
Roll-over protective structure (ROPS)Standard (ISO21299 and OSHA)
Fuel gaugeLCD Display (Orange backlight)
TachometerLCD Display (Orange backlight)
ToolboxStandard
SeatReclining suspension seat
Beverage holderStandard
Fuel typediesel
