Features

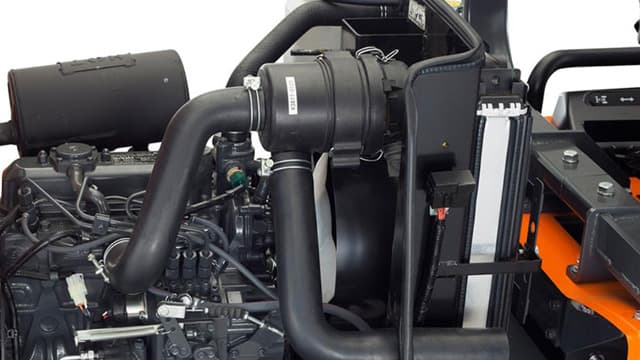

Powerful Kubota diesel engine

Powerful Kubota diesel engine

The Powerful Kubota diesel engines mean faster, more efficient job performance. These F-Series engines have power to spare. Their high torque rise ensures faster, smoother...

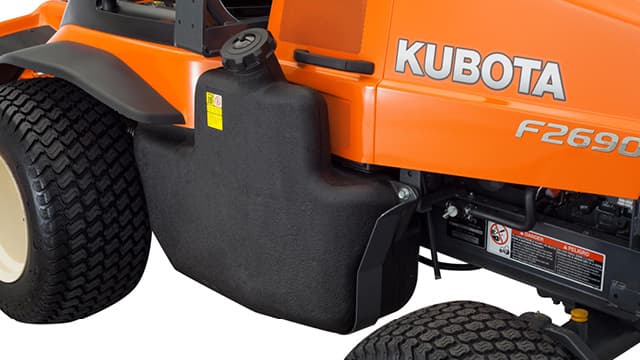

Large capacity fuel tank

Large capacity fuel tank

A large, 16.1 gallon fuel tank not only keeps you working longer between fuel stops, it also reduces the number of fueling stops needed to...

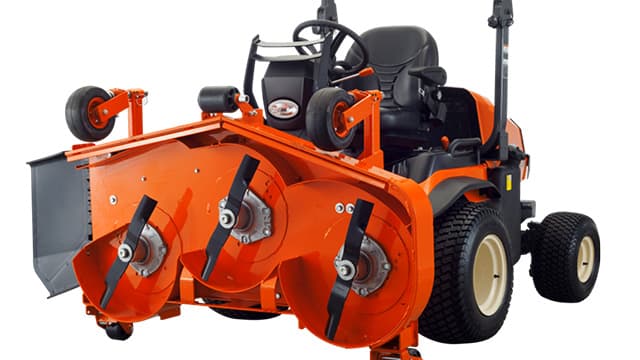

90-degree tilt mower deck

90-degree tilt mower deck

The mower deck lifts a full 90 degrees, providing unobstructed access to the blades and deck underside for easier cleaning and maintenance.

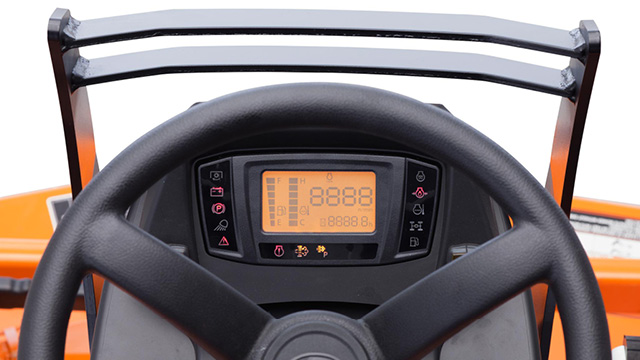

Digital panel

Digital panel

The easier to read LCD digital panel provides vital information about the F-Series mower at a glance, including DPF-related information, engine speed, remaining fuel, water...

Downloads

F Series
F Series Snow Solutions
Operators Manual - F Series

F2690E

F2690E

F2690E

Front Mount Tractors

2 years Warranty

F2690E

Request A Quote

F2690E

Front Mount Tractors

2 years Warranty

Request A Quote

F2690E Specs

Model name
Model nameF2690E
Drive method
Drive method2 WD
Type
TypeHST (F2 / R2)
Cruise control
Cruise controlOptional
Manufacturer
ManufacturerKubota D1105
Type
TypeLiquid-cooled diesel (3 cyl)
Engine gross power
Engine gross power17.37 kW / 23.3 HP
Displacement
Displacement1123 cc / 68.6000 cu. in.
Air cleaner
Type
TypeDual element
Fuel type
Fuel typediesel
Alternator
Alternator12 V, 40A
Fuel tank capacity
Fuel tank capacity61 l / 16.1 gal
Forward
Forward19.3 km / h / 12 mph
Reverse
Reverse10 km / h / 6.2 mph
Differential lock
Differential lockStandard
Turn assist brake
Turn assist brakeOptional
Brakes
System
SystemWet discs
Steering
Type
TypeHydrostatic power
Tilt steering wheel
Tilt steering wheelStandard
Front
Front23 × 10.5 - 12
Rear
Rear16 × 6.5 - 8
Front
Front975 mm / 38.4 in
Rear
Rear875 mm / 34.4 in
Wheelbase
Wheelbase1300 mm / 51.2 in
Overall length
Overall length2450 mm / 96.5 in
Overall width
Overall width1240 mm / 48.8 in
Overall height
Overall height1975 mm / 77.8 in
Weight
Weight723 kg / 1594 lb
Ground clearance
Ground clearance175 mm / 6.9 in
Type
TypeIndependent live, Shaft drive
Revolution
Revolution2545
Clutch
ClutchWet multi discs, hydraulic
Lift system
Lift systemHydraulic 2-point hitch
Tilt assist
Tilt assistStandard
Weight transfer system
Weight transfer systemStandard
Roll-over protective structure (ROPS)
Roll-over protective structure (ROPS)Standard (ISO21299 and OSHA)
Fuel gauge
Fuel gaugeLCD Display
Tachometer
TachometerLCD Display
Toolbox
ToolboxStandard
Seat
SeatReclining suspension seat
Beverage holder
Beverage holderStandard
