L3560-Cab | Compact Tractor

Features

HST PLUS transmission option

Tackle any task with ease and efficiency. With startling precision, HST Plus’s automated control of both the HST pump and drive motor gives you optimal...

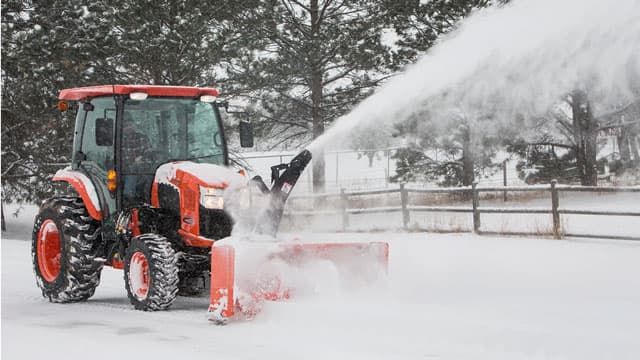

4-wheel drive

The 4-wheel drive of the Grand L60 provides superior pulling power and traction in almost any working condition. The front-wheel-drive bevel gear delivers a smooth...

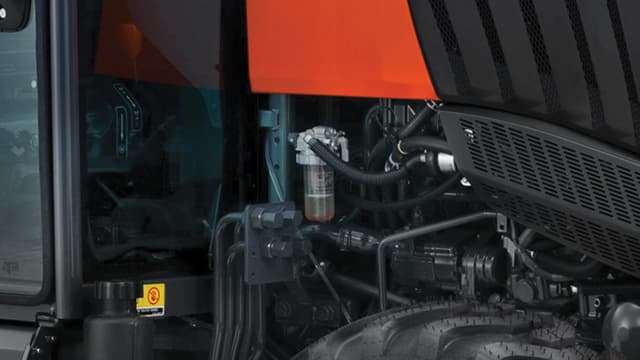

Front loader hydraulic valve

Kubota has designed an integral Front Loader Valve as part of the tractor. With this valve, you can quickly and easily attach the front loader...

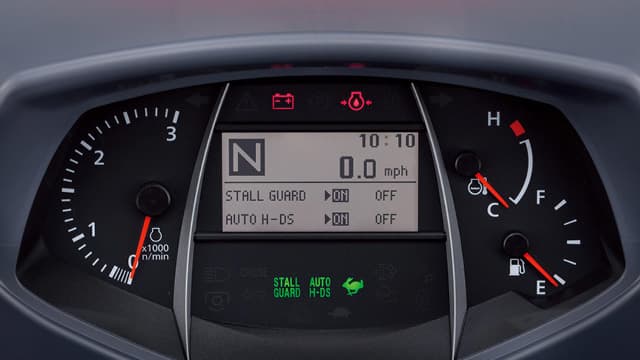

HST mode selection stall guard plus auto H-DS

Choose from three HST mode settings with a simple push of a button from the IntelliPanel to help you get your work done easier. Manual...

Hydro dual speed (H-DS)

Kubota’s HST Plus gives you more control. Featuring three speed ranges, it includes a steering column lever to shift between high and low speeds for...

Downloads

L60 Series

Orange Plus – Residential Equipment

Operators Manual - L60 Series: Open Station

Operators Manual - L60 Series: Cab

L3560 Cab Specs

Model name

Model nameL3560HSTCC

Type

TypeE-TVCS, indirect injection, vertical, liquid-cooled 4-cycle diesel

Aspiration

AspirationNatural with EGR

Bore

Bore87 mm / 3.4 in

Stroke

Stroke102.4 mm / 4 in

Rated engine speed

Rated engine speed2700 rpm / 2700 rpm

Engine gross horsepower @ rpm

Engine gross horsepower @ rpm27.6 kW / 37 HP

Engine net horsepower @ rpm

Engine net horsepower @ rpm26.1 kW / 35 HP

PTO horsepower

PTO horsepower20.9 kW / 28 HP

Displacement

Displacement1826 cc / 111.4000 cu. in.

Alternator

Alternator60 A / 60 A

Fuel tank capacity

Fuel tank capacity51 l / 11.2 gal

Number of

Cylinders

Cylinders3

Mid-PTO

Mid-PTOOption

Type

TypeIndependent

Rear

Revolution

Revolution1

PTO/engine speed

PTO/engine speed540 rpm / 540 rpm

Mid

Revolution

Revolution1

Rated engine speed

Rated engine speed2000 rpm / 2000 rpm

Clutch

ClutchDry type single stage

Transmission type

Transmission typeHSTCC

Brake type

Brake typeWet disc type

Drive method

Drive method4 WD

Number of ranges

Forward

Forward3

Reverse

Reverse3

3-Point hitch

3-Point hitchCategory I

Implement pump

Implement pump31.5 l / min / 8.3 gpm

Power steering pump

Power steering pump18.6 l / min / 4.9 gpm

Total hydraulic flow

Total hydraulic flow50.1 l / min / 13.2 gpm

Steering type

Steering typeHydrostatic power steering

Remote valves

Remote valves1st, 2nd Std. (3rd Opt.)

Llft control type

Draft control

Draft controlOption

Position control

Position controlStandard

Lift capacity

24" behind lift point

24" behind lift point1200 kg / 2650 lb

Ground clearance

Ground clearance342 mm / 13.5 in

Wheelbase

Wheelbase1805 mm / 71.1 in

Weight

Weight1745 kg / 3847 lb

Overall height

Open Station

Open Station2300 mm / 90.6 in

Overall length

Without 3 Pt hitch

Without 3 Pt hitch2920 mm / 115 in

Overall width

(min. tread)

(min. tread)1520 mm / 59.8 in

Standard tire size

Front

Front7.2-16

Rear

Rear12.4-24

Tread width

Front

Front1155 mm / 45.5 in

Rear

Rear1200 mm / 47.2 in

Turning radius

With brake

With brake2.7 m / 8.9 ft

Battery

Battery582 A / 582 A

Fuel type

Fuel typediesel

Forward - H-DS lever - Low

Low

Low3.4 km / h / 2.1 mph

Medium

Medium6.9 km / h / 4.3 mph

High

High15.9 km / h / 9.9 mph

Forward - H-DS lever - High

Low

Low5.6 km / h / 3.5 mph

Medium

Medium11.5 km / h / 7.1 mph

High

High26.5 km / h / 16.5 mph

Reverse - H-DS lever - Low

Low

Low3 km / h / 1.9 mph

Medium

Medium6.2 km / h / 3.9 mph

High

High14.3 km / h / 8.9 mph

Reverse - H-DS lever - High

Low

Low5.1 km / h / 3.2 mph

Medium

Medium10.3 km / h / 6.4 mph

High

High23.9 km / h / 14.9 mph
