Features

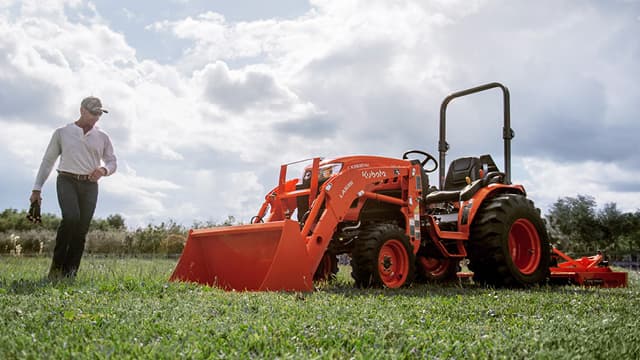

Loader with optional swift-tach & self levelling
The Mechanical Self-Levelling option allows the LX Series’ front loader to operate with additional precision while the optional Swift-Tach kit allows you to attach or...

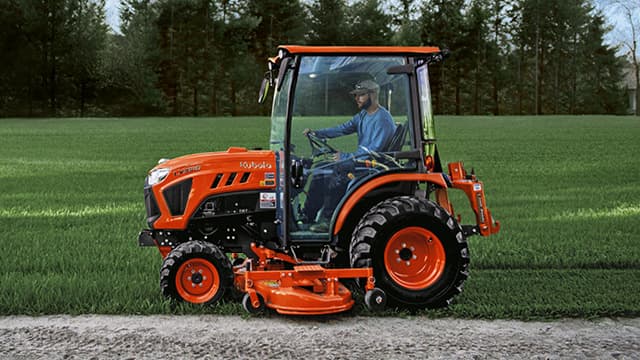

Deluxe Cab
The factory-installed cab is packed with premium features like our standard heater and air conditioner. A new seat with deeper suspension keeps you comfortable and...

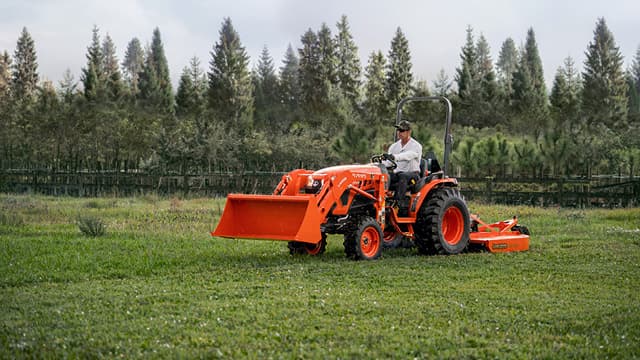

Powerful Kubota diesel engine
The LX2610 comes with a renowned and proven 3-cylinder Kubota diesel engine. The LX3310 model features a powerful and efficient 4-cylinder Turbo, Common Rail System...

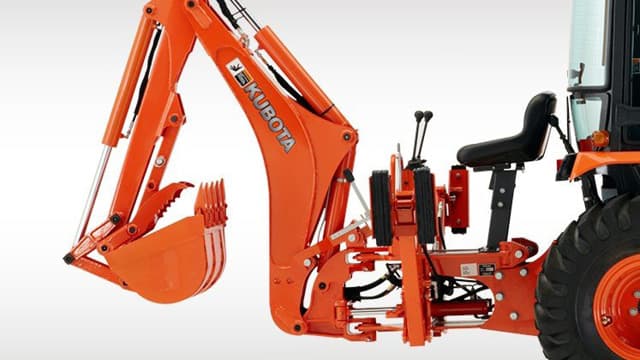

BH77 Backhoe
The BH77 is a powerful, smooth operating backhoe, with large digging depths, and comes equipped with bucket compatibility.

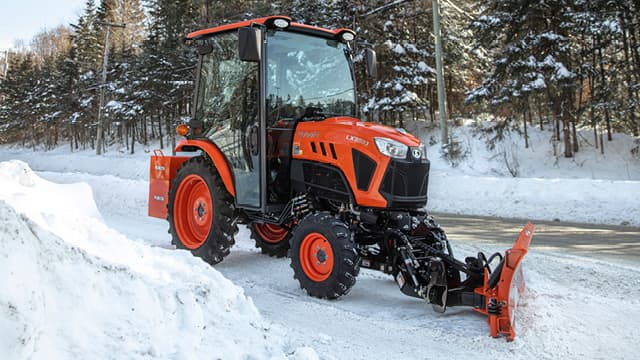

4 point hitch & K-Connect
The 4-Point Hitch allows you to pick up front attachments and the K-Connect lets you engage and disengage the front Power Take-Off (PTO) easily.

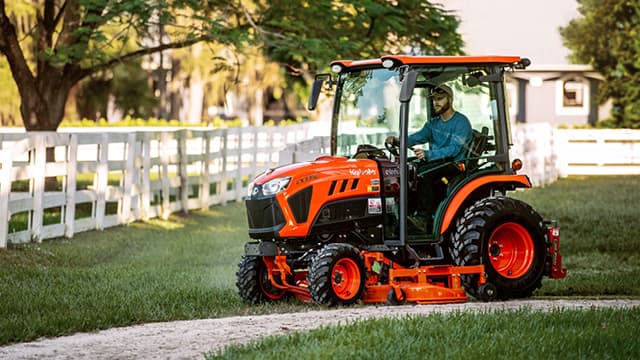

60" & 72" mower options
Choose from a variety of reliable Kubota mid mower decks for quick quality cuts on the yard.

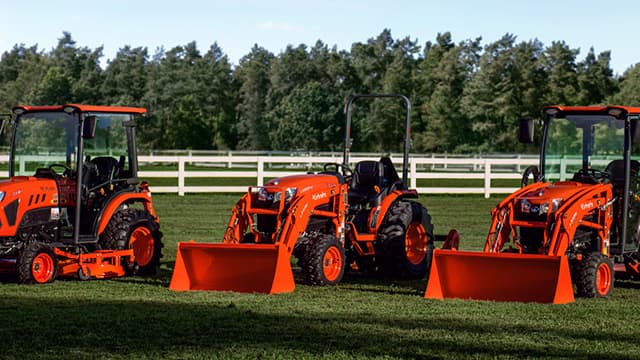

Affordable special utility model
Enjoy value and quality performance with the LX2610SU variant. This model packs impressive performance, larger tire options, high front loader and 3-pt hitch lifting capacity.

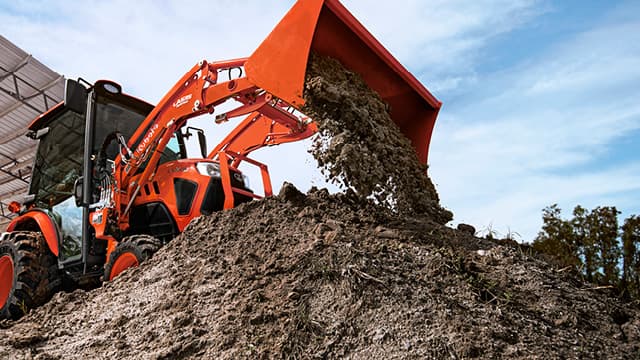

Exclusive Goodyear R14 tires
Experience grippy traction on snow, ice, turf or mud with these high-quality tires.
LX3310 Cab Specs
Model nameLX3310HSDCC
ModelV1505-CR-TE5-D36Q1
TypeE-CDIS, liquid cooled, 4-cylinder diesel
Air pre-cleaner6.0 inch Dual paper element
Bore78 mm / 3.1 in
Stroke78.4 mm / 3.1 in
Cooling systemPressurized radiator
LubricationForced lubrication
MakeV1505-CR-TE5-D36Q1
Radiator fanRadial air flow
Rated engine speed2500 rpm / 2500 rpm
Engine gross horsepower @ rpm23 kW / 30.8 HP
PTO horsepower20.1 kW / 27 HP
Displacement1498 cc / 91.5000 cu. in.
Fuel tank capacity32 l / 8.4 gal
TypeIndependent
Rear
PTO/engine speed540 rpm / 540 rpm
Mid
Rated engine speed2500 rpm / 2500 rpm
ClutchN / A
Transmission typeHST (3 ranges)
Differential lockStandard
Brake typeMulti-plate wet disc
Control systemPosition control valve
3-Point hitchCategory I
TypeOpen center
Total pump output33.1 l / min / 8.7 gpm
Pump typeDual pump
Hydraulic outletRear outlet
Steering typeHydraulic power steering
Lift capacity
24" behind lift point760 kg / 1676 lb
At lift points970 kg / 2139 lb
Final driveSpur gear
Ground clearance370 mm / 14.6 in
Overall height2150 mm / 84.6 in
Wheelbase1666 mm / 65.6 in
Weight1160 kg / 2557 lb
Overall length
Without 3 Pt hitch2640 mm / 103.9 in
Overall width
(min. tread)1365 mm / 53.7 in
Standard tire size
Front R144902
Front R423 x 8.50-14
Front R1423 x 8.50-12
Rear R112.4-16
Rear R412.4-16
Rear R1414-17.5
Turning radius
With brake2.1 m / 6.9 ft
Cooling system capacity4.3 l / 4.5 qt
Engine lubricant oil capacity4.7 l / 5 qt
Transmission oil capacity15 l / 4 gal
Fuel typediesel
Forward (R1)21.9 km / h / 13.6 mph
Reverse (R1)16.5 km / h / 10.3 mph
Features4-pillar integrated cabin, Cruise control (Multi-stage notch), Tilt-steering, Deluxe seat with arm r
