Features

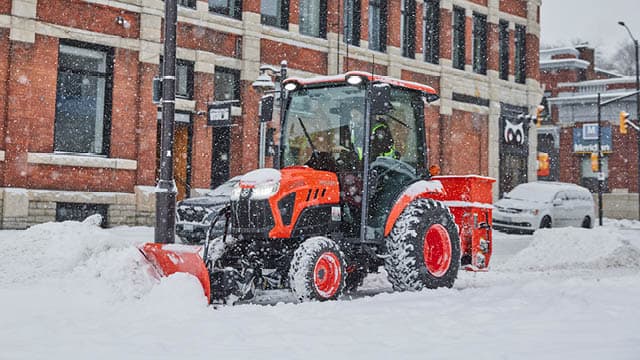

Compact size with plenty of power
The LX20 is just right for both residential and commercial tasks, offering a compact size with impressive power for material handling, loader work, snow removal,...
Performance-matched loader
Kubota’s Performance-Matched Loaders are just right for the LX20 series, delivering seamless integration with the tractor’s hydraulic system and controls. Engineered for versatility, these loaders...

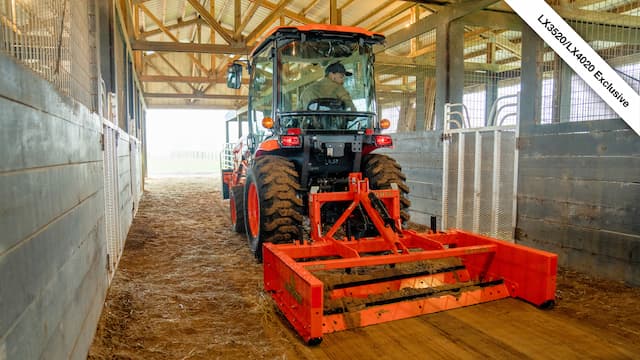

Auto throttle
The engine speed is linked to the travel speed allowing you to control the RPM with the HST pedal and set it to your desired...

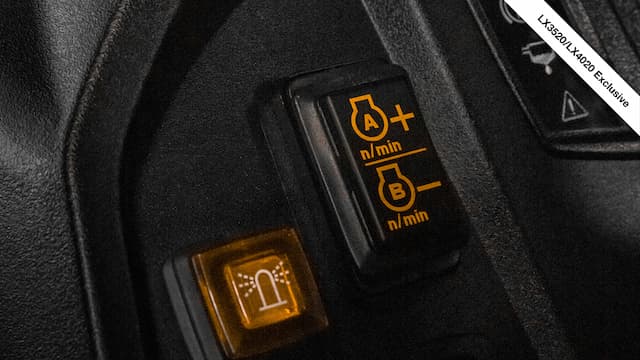

Dual engine memory switch
Quickly and easily adjust the engine RPM by pushing the dual engine memory switch.

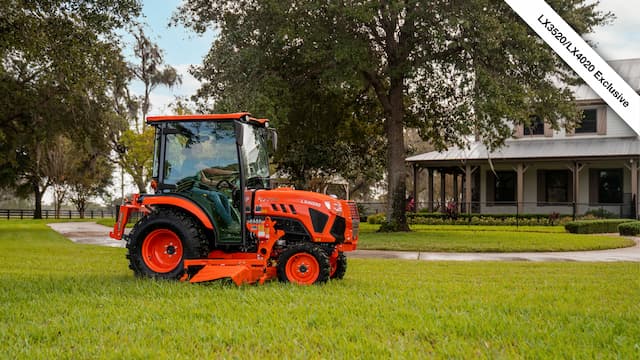

Increased travel speed: LX3520 and LX4020 models
Choose from 26, 35 or 40 horsepower to meet your needs – whichever is just right for your needs. With increased travel speeds on the...

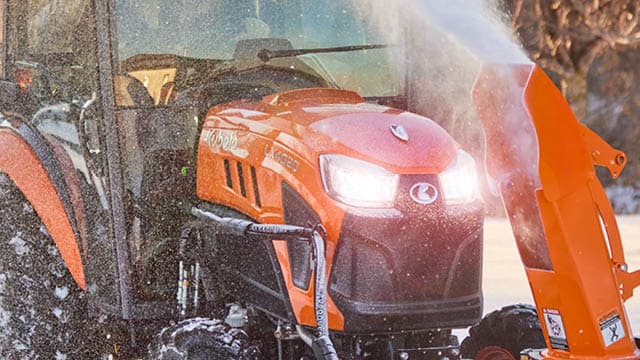

LED headlights
Keep working through the night and into the early morning: LED work lights are standard front and rear on LX models. Plus, with cold weather...

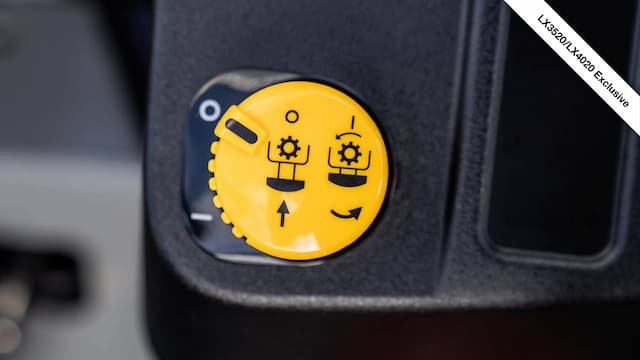

Independent clutch-less PTO switch
Expect quick and simple engagement of the PTO through the electric switch while operating. Push and turn to start the PTO, and push to stop.

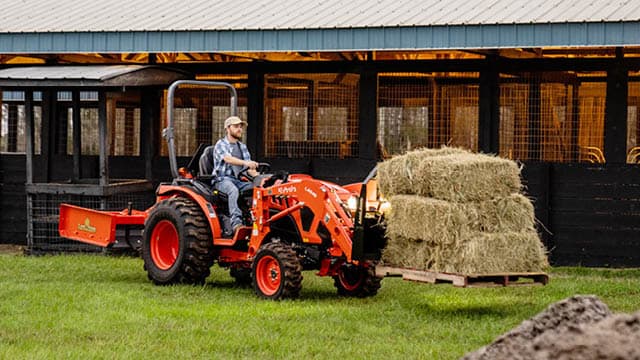

Kubota HST transmission
Match any job with the 3-range hydrostatic (HST) transmission that’s clutch-less for easy operation. Select from low range when you need extra power, mid range...

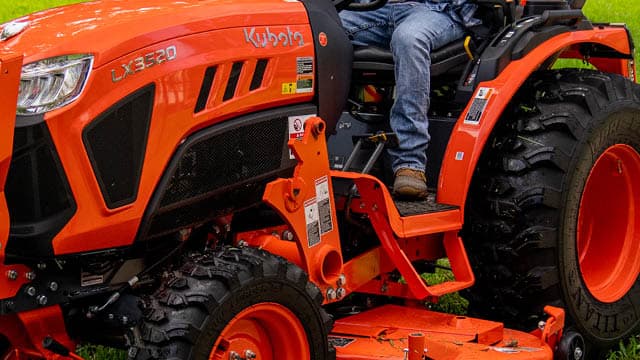

Wide operator platform
The large, flat deck offers plenty of legroom and makes it easy to get in and out of the LX20. Enjoy lots of space between...

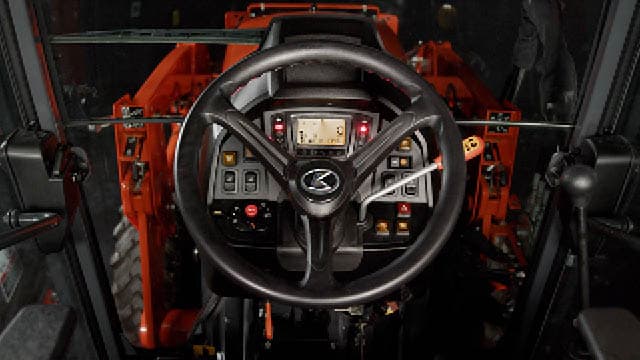

Ergonomic lever grips and steering wheel
Enjoy easy access and smooth, low vibration in your hands and arms with every application. It’s just right, every time.

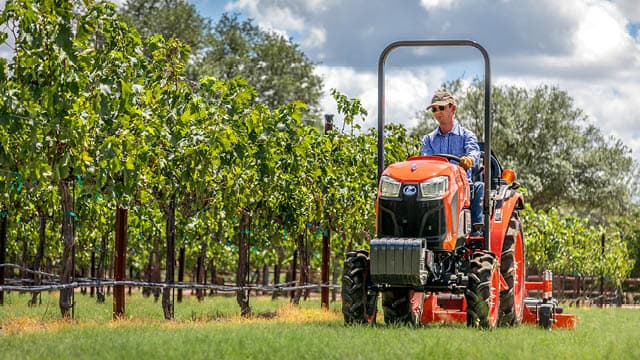

Narrow Model Available
Perfect for tight spots such as orchards, vineyards, and nurseries, the Kubota LX20N is a great narrow option.
LX3520 Specs
Model nameLX3520
Trim Level
Standard
ModelV1505
TypeTurbocharged direct injection, 4 cycle diesel
Air pre-cleanerDual Paper Element
Cooling systemLiquid-cooled
Rated engine speed2700 rpm / 2700 rpm
Engine gross horsepower @ rpm26.02 kW / 34.9 HP
PTO @ rpm21.4 kW / 28.7 HP
Displacement1498 cc / 91.4100 cu. in.
Fuel typeDiesel
Fuel tank capacity8.5
Number of
Cylinders4
Mid-PTOEquipped
Rear PTOOptional
TypeLive independent PTO (with hydraulic clutch)
Rear
PTO/engine speed540 rpm / 2670 rpm
Mid
Rated engine speed2460 rpm / 2700 rpm
Brake typeWet disc
Transmission type3-range HST, High-Med-Low gear shift
Drive method4 WD
Differential lockEquipped
at rated engine rpm (Turf)
Forward27.4 km / h / 17 mph
Reverse20.8 km / h / 13 mph
3-Point hitchCategory I
StabilizersTelescopic
Loader valveEquipped
Steering typeHydrostatic Power Steering
Total pump output35.8 l / min / 9.5 gpm
3-Point hitch
TypePosition
Lift capacity
At lift points1150 kg / 2535 lb
24" behind lift point890 kg / 1962 lb
Number of
Rear remote valves2 (optional)
Front7-12 (AG)
Rear12.4-16 (AG)
Type
FrontTurf (R3), Industrial (R4), Hybrid (R14), Agriculture (R1)
RearTurf (R3), Industrial (R4), Hybrid (R14), Agriculture (R1)
Ground clearance325 mm / 12.8 in
Overall width1365 mm / 53.7 in
Wheelbase1695 mm / 66.7 in
Overall height2245 mm / 88.4 in
Turning radius2700 mm / 106.8 in
Weight994 kg / 2191 lb
Overall length
With 3 Pt hitch2950 mm / 116.1 in
Tread width
Front1050 mm / 40.7 in
Rear1050 mm / 41.3 in
Foldable ROPSEquipped
Display ScreenLCD
USB PortNot Equipped
12V PortEquipped
Tilt SteeringEquipped
Cruise controlEquipped
HeadlightsLED
BackhoeBH77A (Optional)
LoaderLA545 (Optional)
K-Connect Utility Snowblower63" - LX2963 (Optional)
K-Connect Commercial Snowblower51" - K51-22-7CF & 64" - K64-22-7CF (Optional)
K-Connect Straight Blade60" - LX2960A & 72" - LX2972A (Optional)
K-Connect Commercial V-Blade55" - LX2990 (Optional)
K-Connect Sweeper66" - LX2950 (Optional)
K-Connect Debris Blower3500CFM - LX2946 (Optional)
