Features

Powerful Kubota diesel engine

Powerful Kubota diesel engine

Every RTV-X comes equipped with a 3-cylinder diesel engine that outputs 23.3 HP and 51.4 ft-lbs of torque, which provide the driver with unparalleled power...

One pedal operation

One pedal operation

No one understands variable hydrostatic transmissions better than Kubota. Our advanced 2 range VHT-X provides a wide torque band and allows you to easily control...

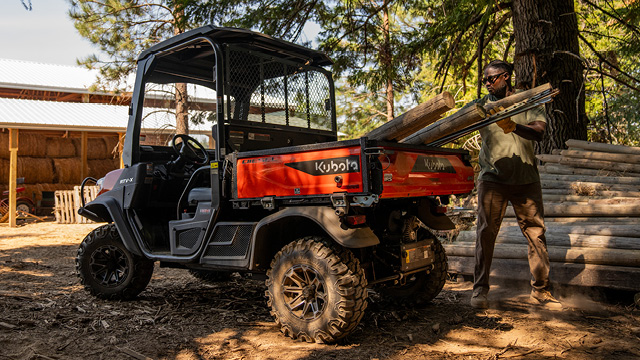

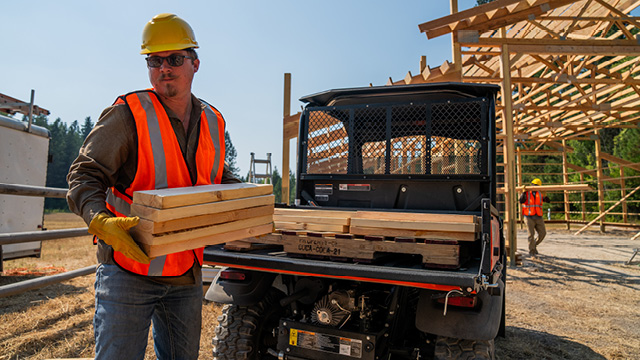

Heavy duty steel cargo box

Heavy duty steel cargo box

The rugged full steel constructed cargo box, with optional factory-installed bed liner helps protect the bed from dirt and damage. Unloading cargo is easier than...

Spacious & Comfortable Interior

Spacious & Comfortable Interior

Get the control you need to tackle any terrain with responsive hydrostatic power steering, with a tilt-adjustable* steering wheel that lets you customize the angle...

ProKonvert 3-way open cargo box

ProKonvert 3-way open cargo box

The new ProKonvert cargo box equipped on premium models redefines what a UTV can do. The innovative bed design allows you to open from either...

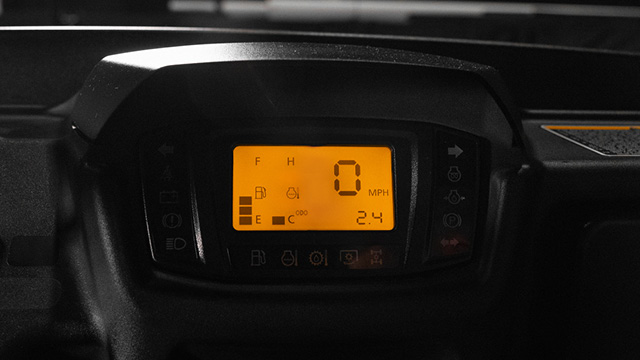

LCD Meter Panel

LCD Meter Panel

A bright and easy-to-read LCD meter provides all the information you need as an operator to keep your RTV running at optimum efficiency.

Strong high-rigidity frame

Strong high-rigidity frame

Experience less noise, vibrations and harsh sounds thanks to the RTV-X’s high-rigidity steel frame. Its industry-leading structural strength ensures it can endure years of stress...

Front and rear independent suspension

Front and rear independent suspension

No matter what you’re carrying or where, Kubota’s Extra Duty IRS (Independent Rear Suspension) technology on all four wheels sets a new standard for durability...

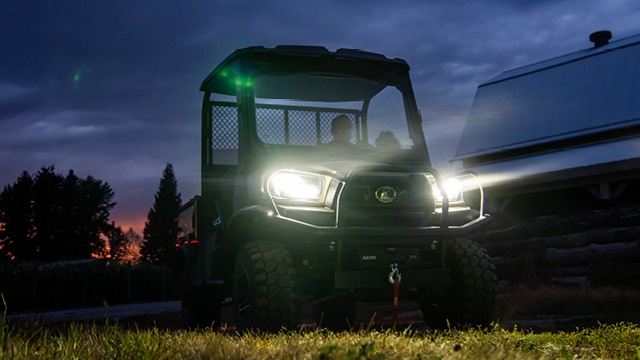

LED Low and High Beams

LED Low and High Beams

You can’t always wait for optimum working conditions. With the new LED low and high* beam lights, you can get the job done in foggy...

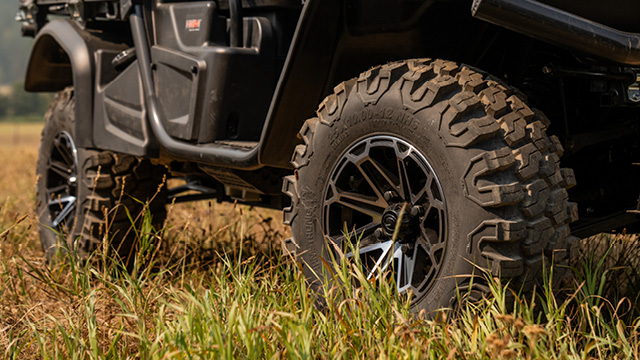

New Heavy Duty Multi-Purpose Tires

New Heavy Duty Multi-Purpose Tires

Don’t let any terrain hold you back, thanks to the heavy duty multi-purpose tires. As good on loose soil and mud as it is on...

Multiple colour options

Multiple colour options

Choose an RTV-X that suits you, with three available colour options: Orange, Camo and Desert Sand.

Customizable with accessories & attachments

Customizable with accessories & attachments

The RTV-X is designed for maximum versatility, with multiple ways to customize it to fit your needs – as well as plenty of available accessories...

Downloads

RTV-X
RTV-X Snow Solutions
Full Line RTV Accessories & Attachment Brochure
Owner's Manual - RTV-X

RTV-X Premium

RTV-X Premium

RTV-X Premium

Utility Vehicle

2 years Warranty

RTV-X Premium

Request A Quote

RTV-X Premium

Utility Vehicle

2 years Warranty

Request A Quote

RTV-X Premium Specs

Model name
Model nameRTV-X Premium
Body colour
Body colourOrange, Camo, Desert Sand
Make
MakeKUBOTA D1105-E4-UV
Type
Type3-cylinders, 4-cycle, diesel, OHV
Displacement
Displacement1123 cc / 68.5000 cu. in.
Engine gross power
Engine gross power17.37 kW / 23.3 HP
Cooling system
Cooling systemLiquid
Battery
Battery670 A / 670 A
Headlights
HeadlightsLED (High / Low)
Type
TypeVariable hydro transmission (VHT-X)
Gear selection
Gear selectionHi-Lo range forward, neutral, reverse
Max. traveling speed
Max. traveling speed40 km / h / 25 mph
Differential lock - Front axle
Differential lock - Front axleLimited-slip differential
Steering type
Steering typeHydrostatic power steering
Type of front suspension
Type of front suspensionIndependent, Dual A-arms with adjustable spring preload
Front suspension travel
Front suspension travel205 mm / 8 in
Rear suspension travel
Rear suspension travel205 mm / 8 in
Brakes
Front
FrontWet-disc brakes
Rear
RearWet-disc brakes
Parking brake
Parking brakeRear wheel, hand operated
Ground clearance
Front
Front265 mm / 10.4 in
Rear
Rear260 mm / 10.3 in
Length
Length3123 mm / 123 in
Width
Width1605 mm / 63.2 in
Overall height
Overall height2020 mm / 79.5 in
Wheelbase
Wheelbase2045 mm / 80.5 in
Weight
Weight952 kg / 2099 lb
Turning radius
Turning radius4 m / 13.1 ft
Maximum towing capacity
Maximum towing capacity590 kg / 1300 lb
Maximum payload capacity
Maximum payload capacity668 kg / 1472 lb
Tread centers
Front
Front1240 mm / 48.8 in
Rear
Rear1240 mm / 48.8 in
Seat belts
Seat belts2-point
Open Station Certified
Open Station CertifiedSAE J2194 and OSHA 1928 ROPS
Maximum noise level at operators ear
Maximum noise level at operators ear84 Db
Material
MaterialSteel
Width
Width1465 mm / 57.7 in
Length
Length1030 mm / 40.5 in
Depth
Depth285 mm / 11.2 in
Volume
Volume0.4300 m3 / 15.2000 cu. ft.
Height
Height887 mm / 34.9 in
Maximum payload capacity
Maximum payload capacity500 kg / 1102 lb
Type
TypeProKonvert
Hydraulic bed lift
Hydraulic bed liftStandard
Spray-on bed liner
Spray-on bed linerStandard
Alloy wheel
Alloy wheel(Orange, Camo) Available (Desert Sand) Standard
Front guard
Front guardPremium
Fuel tank capacity
Fuel tank capacity30 l / 7.9 gal
ATV
Front
Front25 × 10-12, 6-ply
Rear
Rear25 × 10-12, 6-ply
HDMP
Front
Front25 × 10-12, 6-ply
Rear
Rear25 × 10-12, 6-ply
