Features

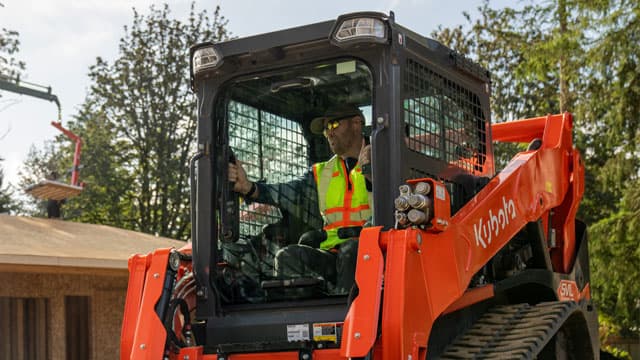

Widest Cab in the market with roll-up door
The sealed and pressurized cabin is 78 dBa at the ear and has a wide entrance, 36” side-screen to side-screen width. This allows operators to...
Vertical lift
Easily dump into the tallest dumpster or truck thanks to Kubota’s outstanding vertical lift. It raises the bucket even higher without sacrificing any of its...

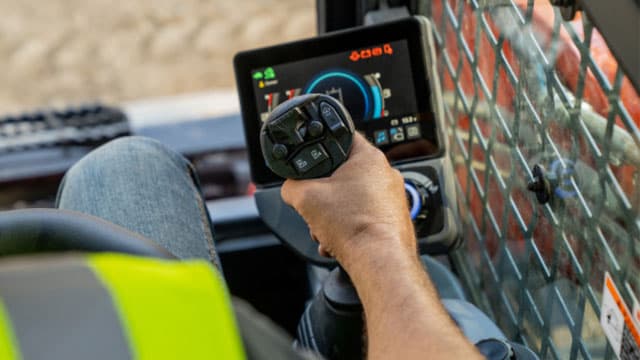

Low effort hydraulics pilot controls
Work next to home structures and curbs with confidence. Kubota’s hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. The...

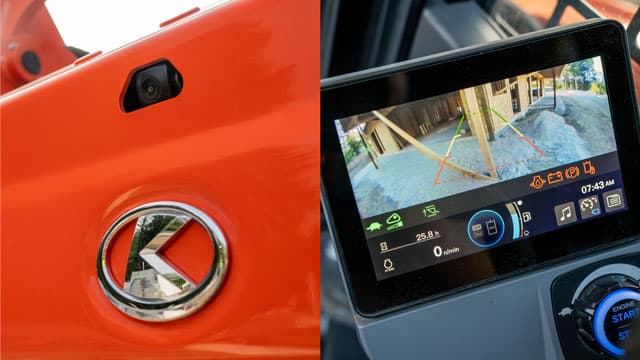

Convenient technology
A full-colour 7” LCD touch screen with Jog Dial provides a quick look at the information you need to operate the SVL75-3 at a higher...

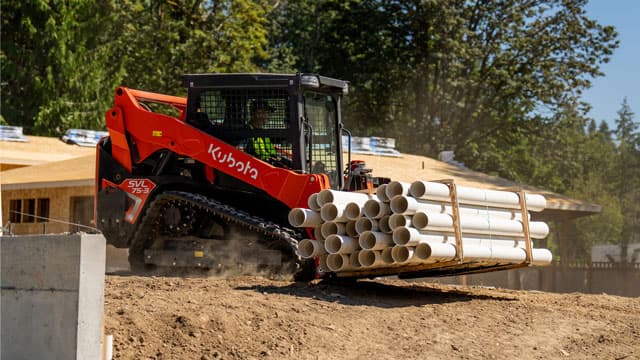

Two speed travel with electronic torque management
Shift from first speed of 9.0 Km/h to second speed of 13.7 Km/h to get the job done faster. Track Response lets you adjust the...

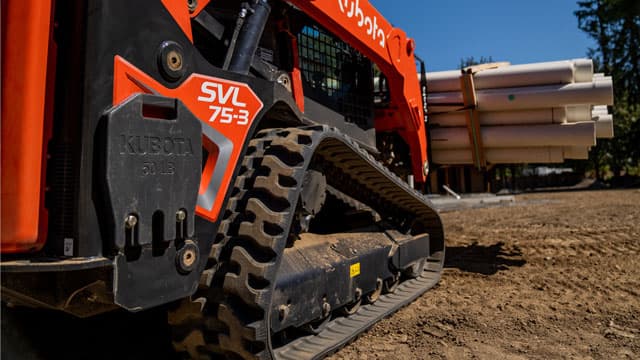

Main frame and undercarriage
The welded integrated mainframe and undercarriage forms an integral part for maximum durability with no exposed hoses. A highly reliable triple flange track roller design...

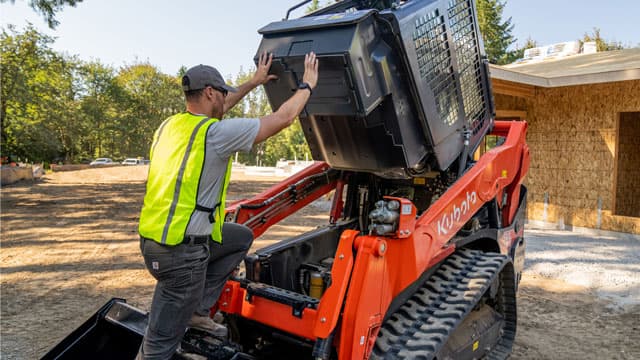

Easy maintenance
With access to the engine room, it’s easier to maintain the upper part of the engine. The cab can be tilted without having to lift...

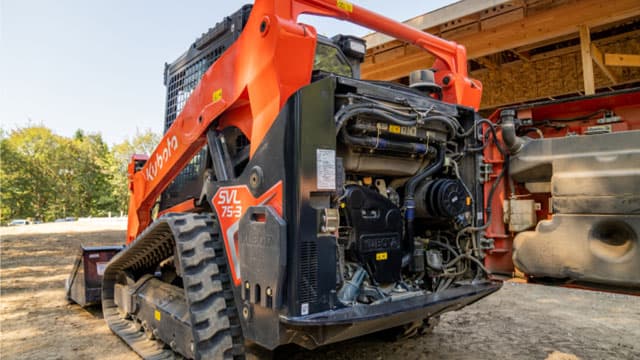

Reliable Kubota engines
A loyalty hallmark, Kubota Engines have proven their worth time and time again. You can find them in all of our diesel engine powered units...
SVL75-3 Specs
Model nameSVL75-3
TypeOpen CAB / Closed CAB
Model nameV3307-TE5A
Engine gross horsepower @ rpm55.4 kW / 74.3 HP
Engine net horsepower @ rpm54.6 kW / 73.2 HP
Rated engine speed2400 rpm / 2400 rpm
Displacement3331 cc / 203.2000 cu. in.
Cylinders4
Bore94 mm / 3.7 in
Stroke120 mm / 4.7 in
AspirationTurbocharged
Rated operating capacity (SAE)
Tipping load. 35%1129 kg / 2490 lb
Tipping load. 50%1613 kg / 3557 lb
Tipping load. straight3226 kg / 7112 lb
Lift arm pathVertical
Breakout force
Bucket2808 kgf / 6191 lbf
Lift arm2142 kgf / 4723 lbf
Track width
Standard400 mm / 15.8 in
Wide400 mm / 15.8 in
Ground clearance296 mm / 11.7 in
Operating weight4273 kg / 9420 lb
Ground contact pressure
Standard0.34 kg / cm2 / 4.8 psi
Track rollers (per side)4
Max. traction force4390 kgf / 9678 lbf
Travel speed
Low9 km / h / 5.6 mph
High13.7 km / h / 8.6 mph
Auxiliary hydraulic flow
Standard72.7 l / min / 19.2 gpm
High112.8 l / min / 29.8 gpm
Auxiliary hydraulic pressure224 kg / cm2 / 3185 psi
Hydraulic system capacity46 l / 12.2 gal
Hydraulic tank16.1 l / 4.3 gal
Fuel tank capacity94.6 l / 25 gal
