U10-5

Mini-Excavators

  • Warranty 2 year

Features

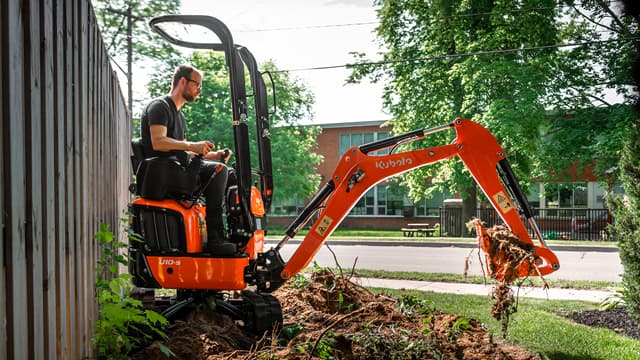

Zero Tail Swing

Worry-free operation in tight spaces thanks to zero tail swing design.

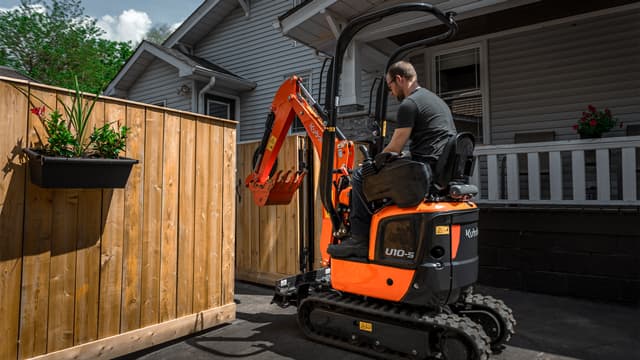

Retractable Tracks

Features retractable tracks that can slim down to 2’6” or expand to 3’3” for better stability.

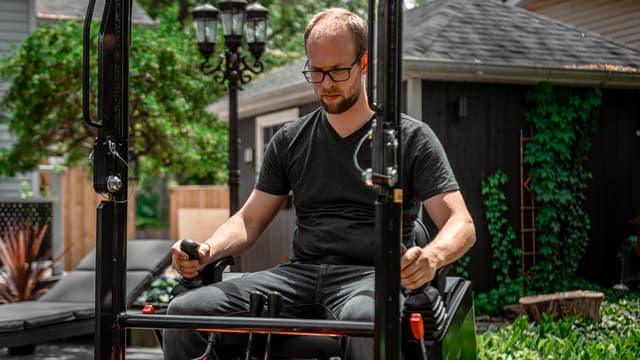

Side Joystick

Easy and simple operation accompanies you for the tough jobs ahead.

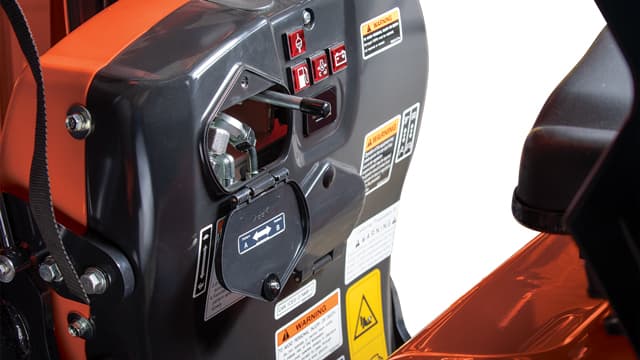

Two Pattern Selector System

Easily transition between excavator and backhoe patterns by shifting a lever.

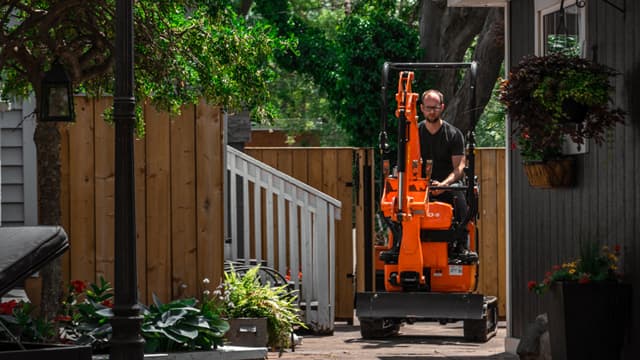

Premium Coupler

Allows quick exchanges between bucket and attachments, the bucket can be reversed to allow the operator to scoop away from the excavator.

Comfortable Workstation

Generous leg room and a fully-padded high-back chair create a comfortable place to get things done.

Specs

Model
Model name
U10-5
Tracks
Type
Rubber
Engine
Output (SAE J1349 net)
10.1 HP / 7.5 kW
Output (SAE J1995 gross)
10.3 HP / 7.7 kW
Displacement
43.8 cu. in. / 719 cc
Rated engine speed
2050 rpm / 2050 rpm
Make
Kubota
Model
D722-E4-BH-5US
Hydraulic system
Breakout force
Arm
1214 lbf / 550.6 kgf
Bucket
2337 lbf / 1060 kgf
Pump capacity
2.8 gpm / 10.5 l/min
Auxiliary hydraulic flow
Drive system
Ground contact pressure
4.2 psi / 0.3 kg/cm2
Tumbler distance
40 in / 1010 mm
Shoe width
7.1 in / 180 mm
Crawler length
53 in / 1340 mm
Travel speed
High
2.5 mph / 4 km/h
Low
1.2 mph / 2 km/h
Swing system
Unit swing speed
8.3 rpm / 8.3 rpm
Boom swing angle
Left
55 deg / 55 deg
Right
55 deg / 55 deg
Dimensions and weight
Blade
Width
39 in / 990 mm
Height
7.9 in / 200 mm
Maximum lift above ground
8.5 in / 215 mm
Maximum drop below ground
7.5 in / 190 mm
Operating weight
Including operator’s weight @ 175 lbs.
2646 lb / 1200 kg
Overall width
Standard
39 in / 990 mm
Narrow
31 in / 750 mm
Track Guage
Standard
39 in / 990 mm
Narrow
31 in / 750 mm
Overall length
117 in / 2980 mm
Overall height
90 in / 2260 mm
Ground clearance
5.5 in / 140 mm
Fluid capacities
Hydraulic Oil
Reservoir
3.3 gal / 12.6 l
System
4.5 gal / 17.1 l
Fuel
Reservoir
3.2 gal / 12 l
ROPS / FOPS
Type
Canopy
