Features
Zero Tail Swing, Zero Worries
Forget worrying about obstacles to the side or behind you with the U17-5. Our zero-tail swing design ensures the tail always stays within the width...

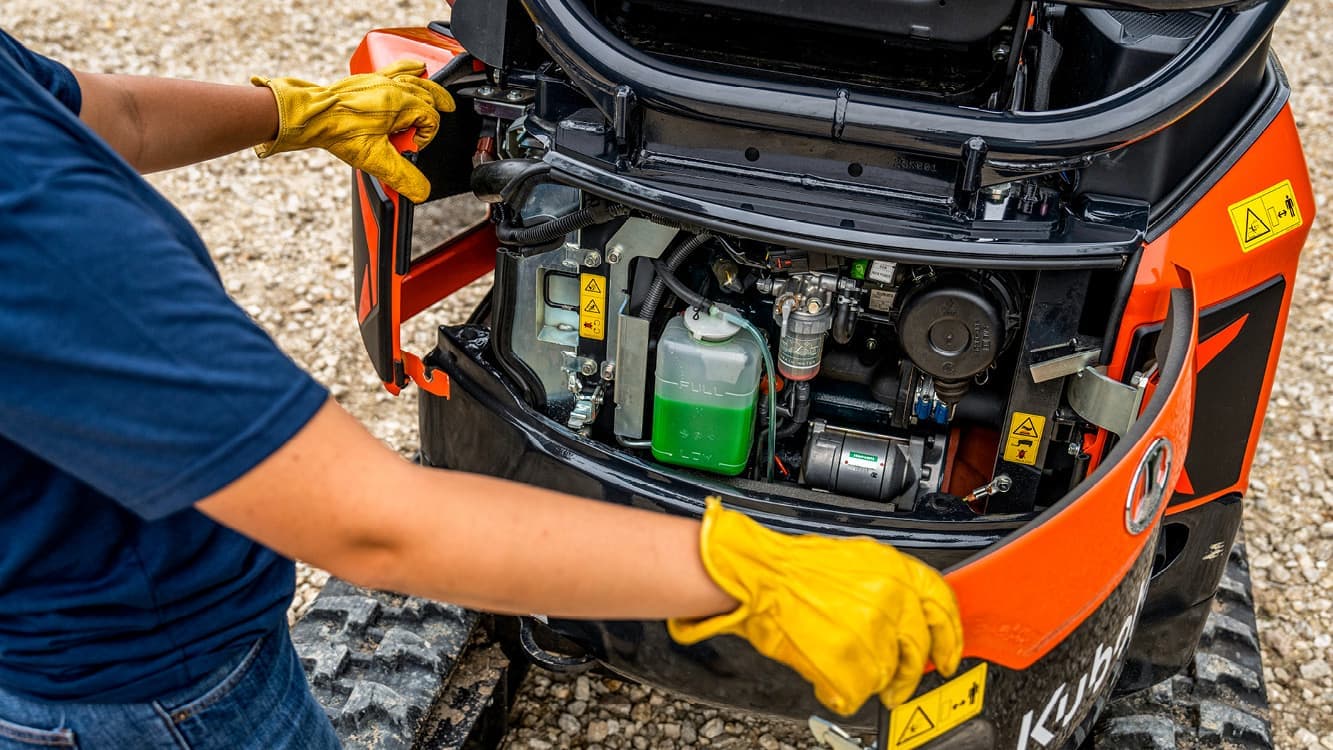

Trusted Kubota Engine Quality
Feel the power of the reliable Kubota Engine, hydraulics, and engineering you trust, now with enhancements for added safety and comfort.

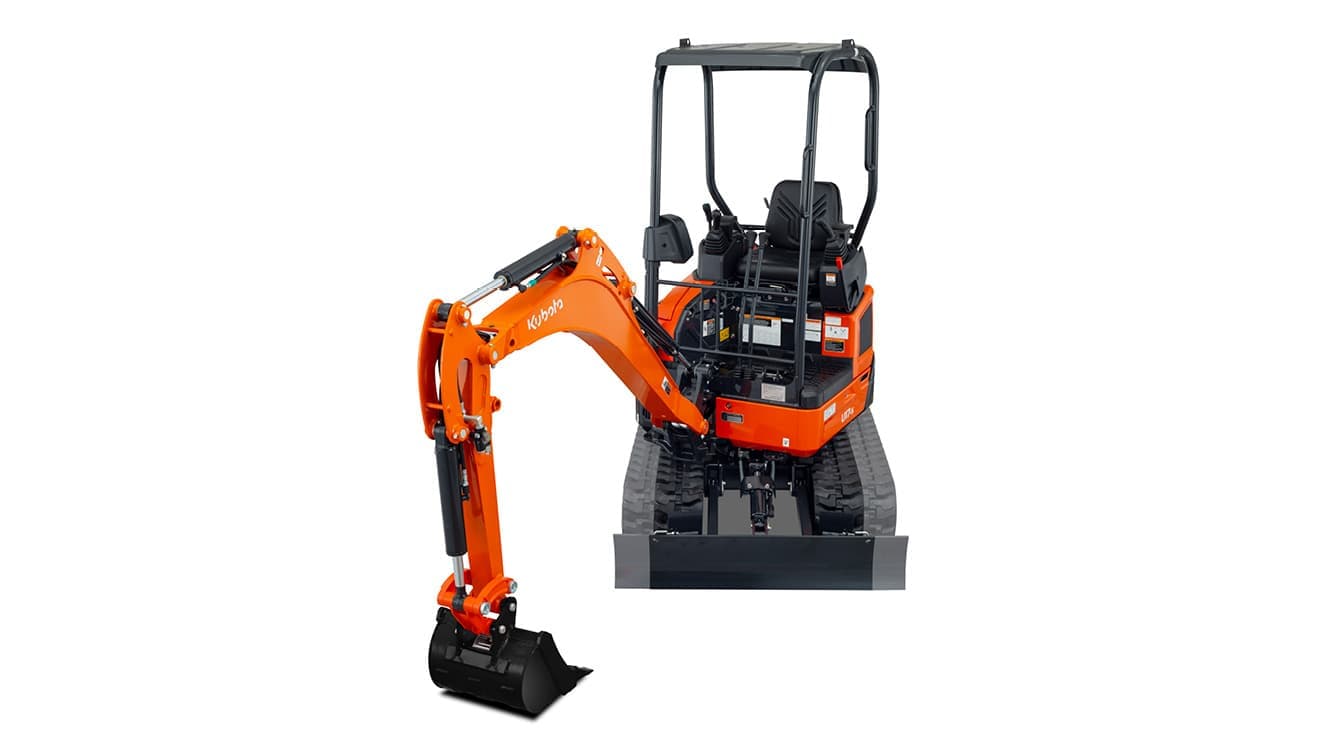

Increased Stability with Expandable Tracks
Our expandable tracks give you increased stability and control, extending the width of the track frame to 51”’s. With this wider footprint, you'll feel more...

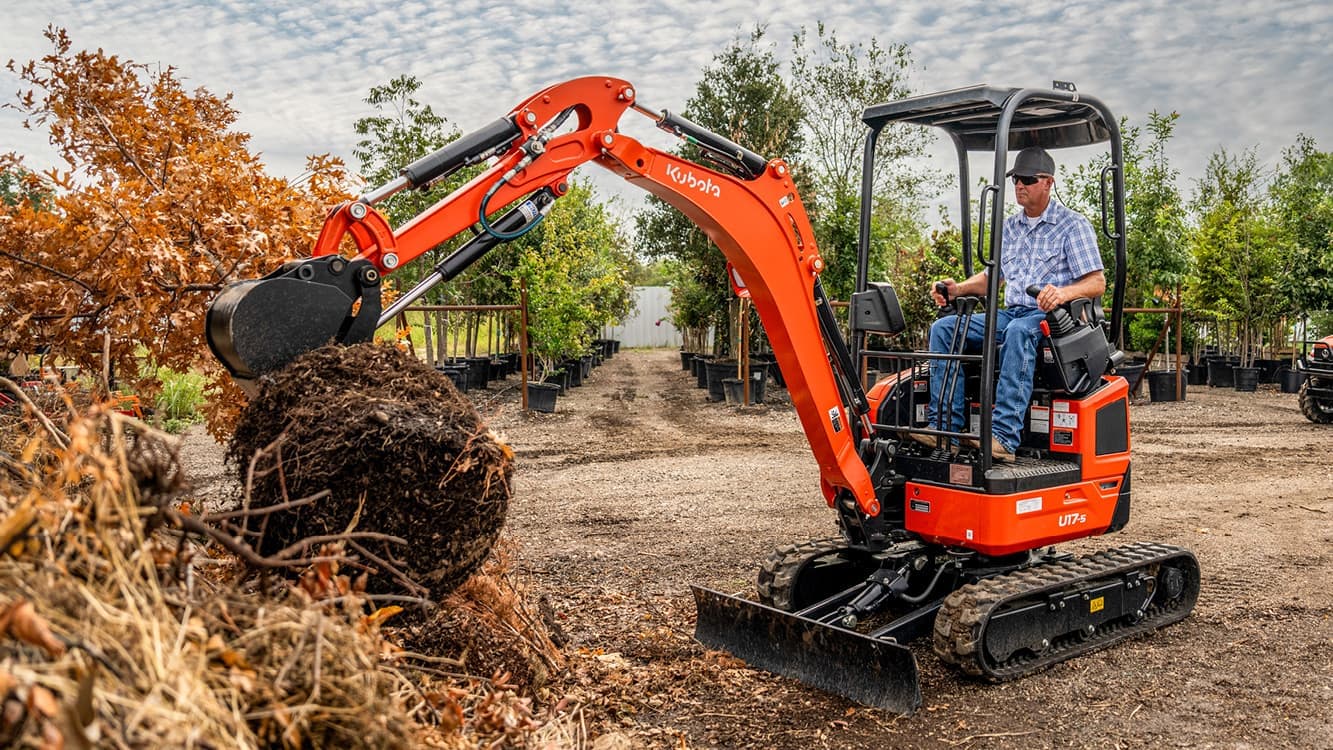

Two Pattern Selector System (TPSS) For Easy Adjustments
Operate in either pattern A (backhoe) or pattern B (excavator) with the Two Pattern Selector System (TPSS) with pilot control hydraulics as standard.

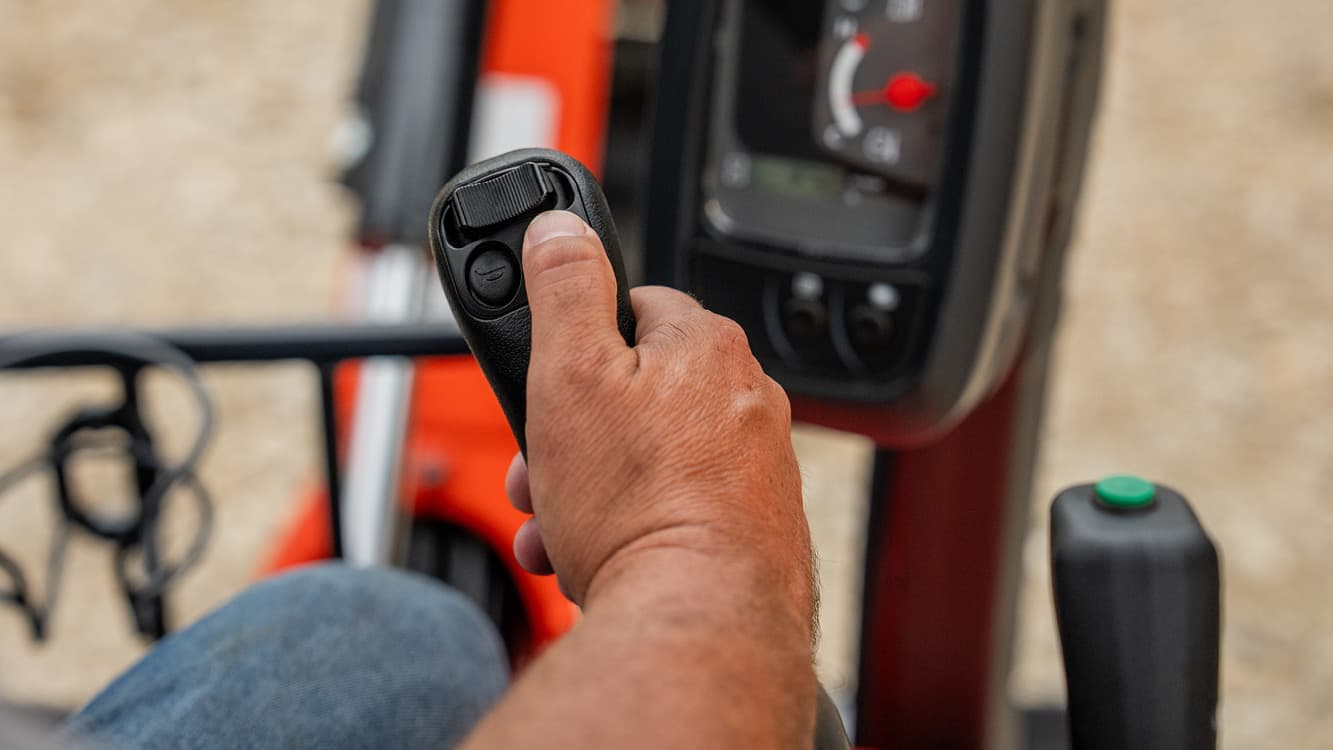

Auxiliary at Your Fingertips
Enjoy enhanced ergonomics and precision, allowing you to effortlessly feather thumb operation with a toggle switch on the joystick rather than using your foot, giving...

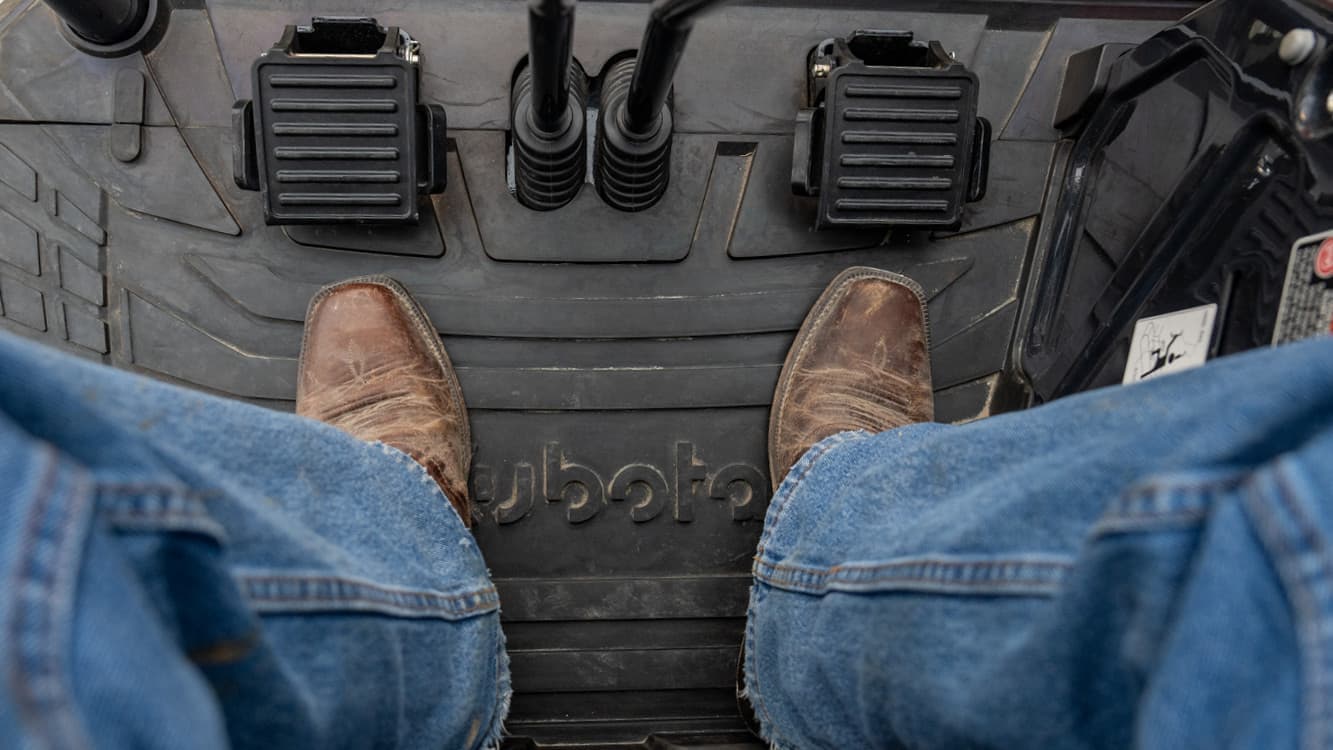

In Your Comfort Zone
With an additional 30 mm of foot room, enjoy extended comfort for the longest work days. The extra space for your work boots facilitates seamless...

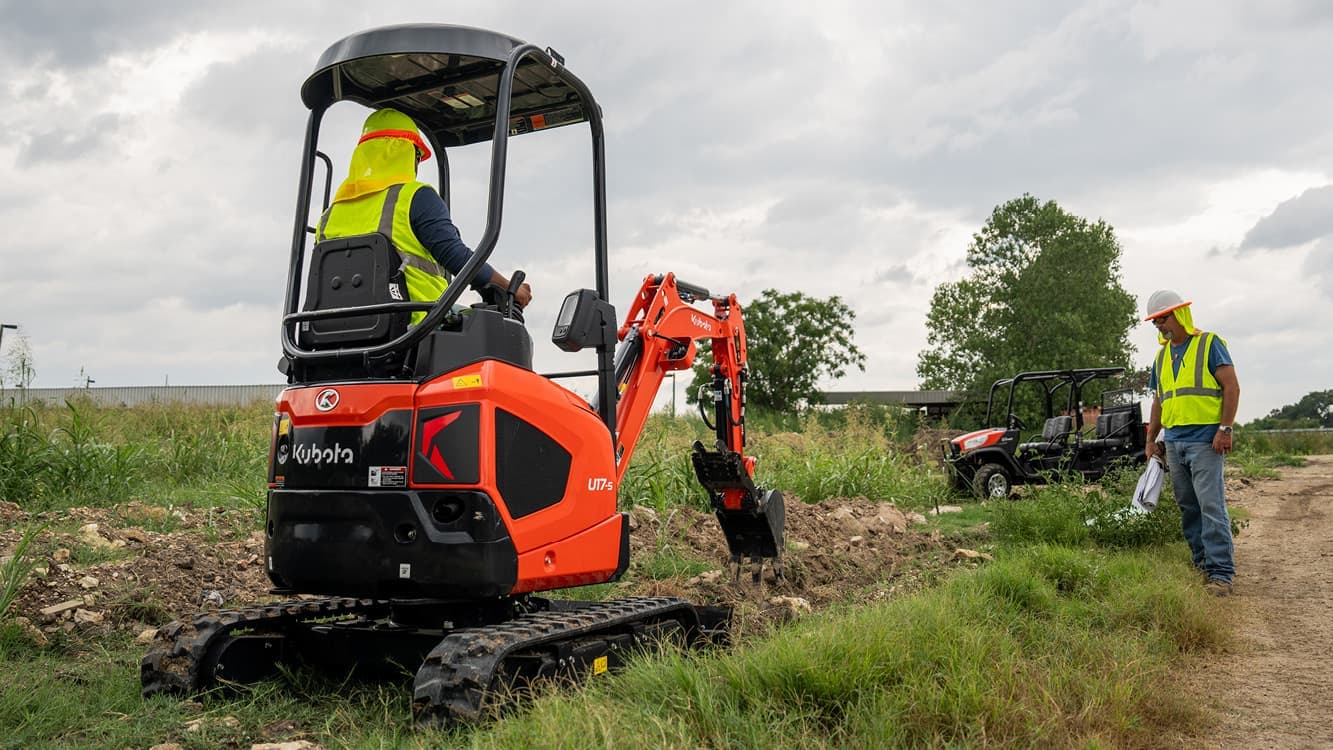

Versatile Attachments
Compatible with a large range of attachments, including a trenching bucket, ditching bucket, tilt ditching bucket, root rake, auger, plate compactor, breaker, and more. With...

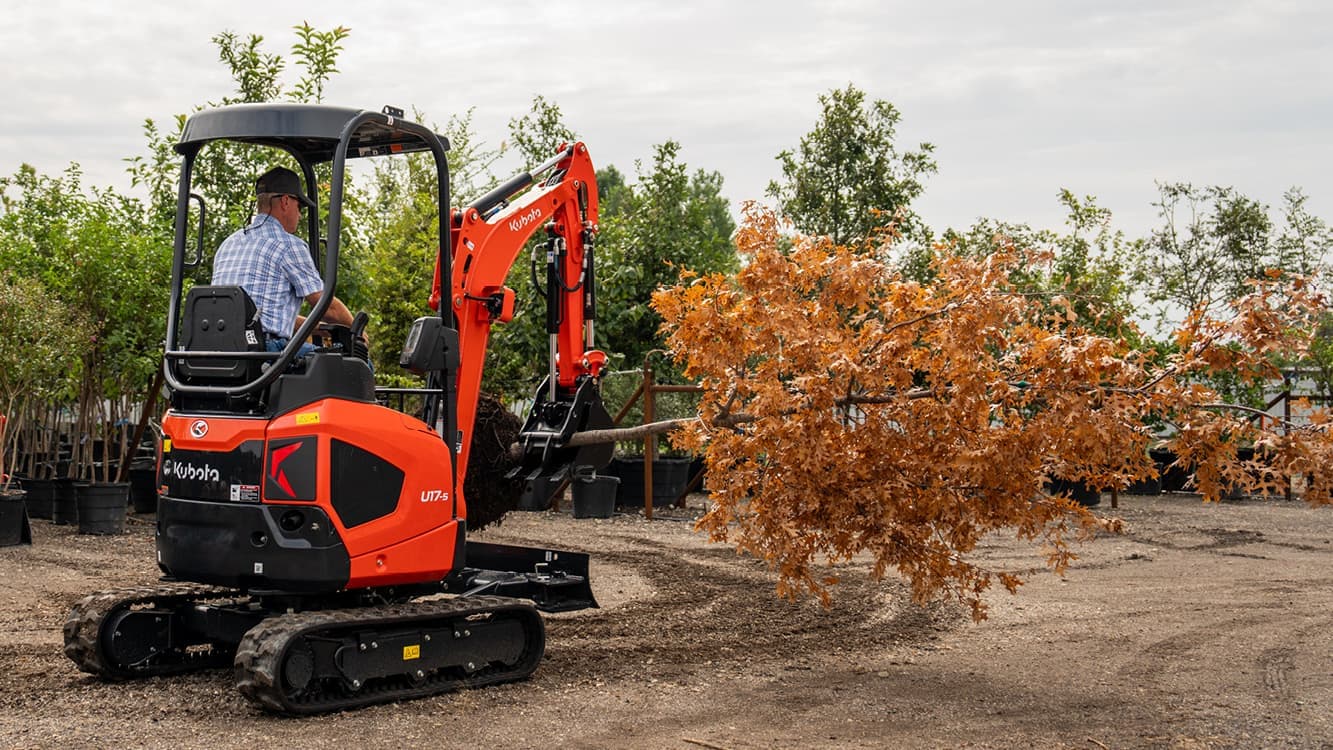

Thumb Option for Effortless Grabbing
Excavators rely heavily on the quality of their attached tools. Kubota provides a thumb option for the U17-5, transforming it into a multipurpose tool. This...

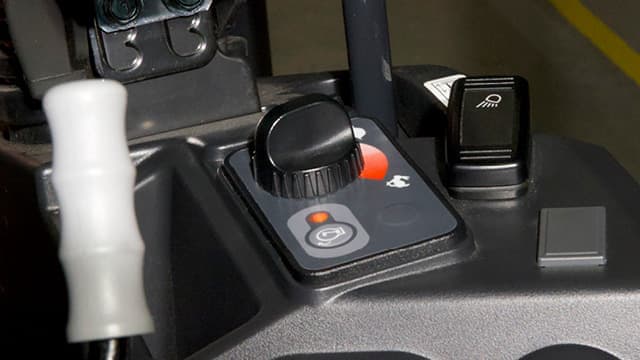

Work Smart With Auto Idle
After the control levers remain in neutral for over 4 seconds, engine RPM automatically idles, swiftly returning to normal upon lever movement. This innovative function...

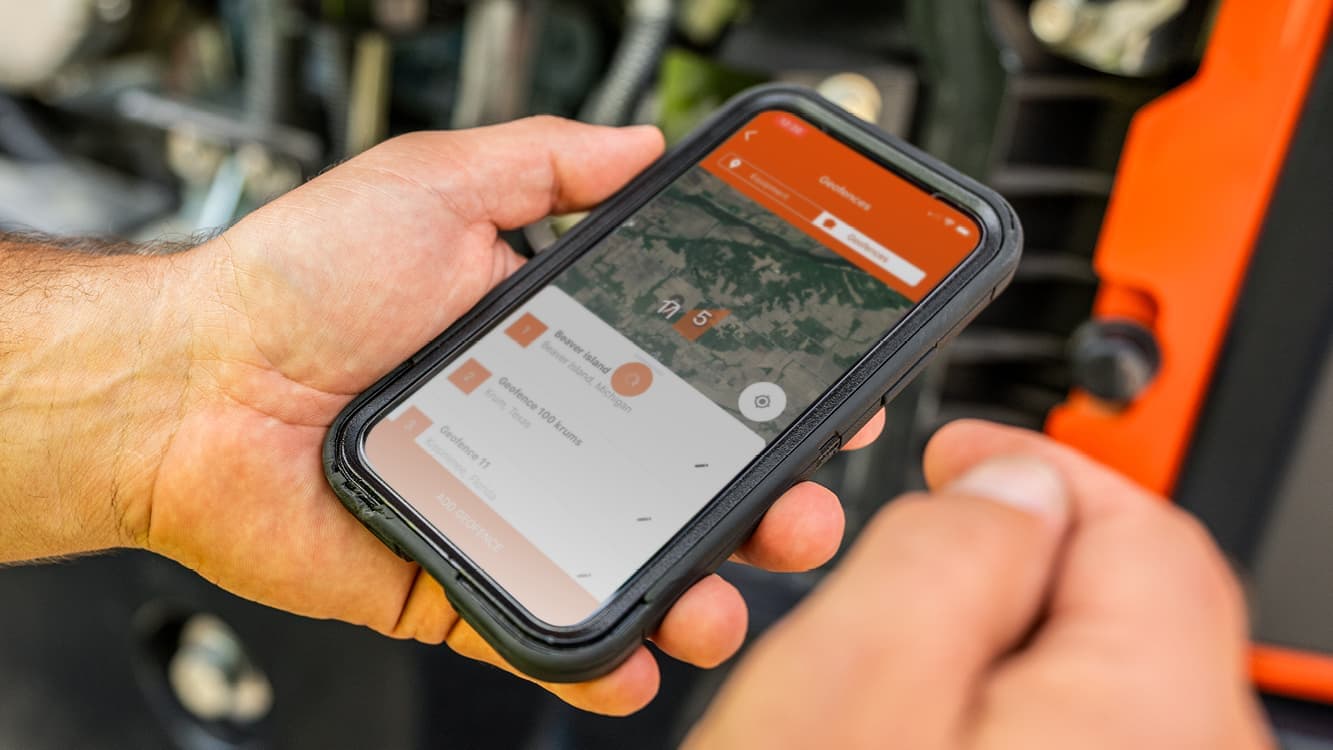

Maximise Productivity with KubotaNOW
Unlock enhanced productivity and minimise downtime with KubotaNOW. Gain peace of mind with complete visibility into your equipment's security, safety, and vital statistics. Keep track...

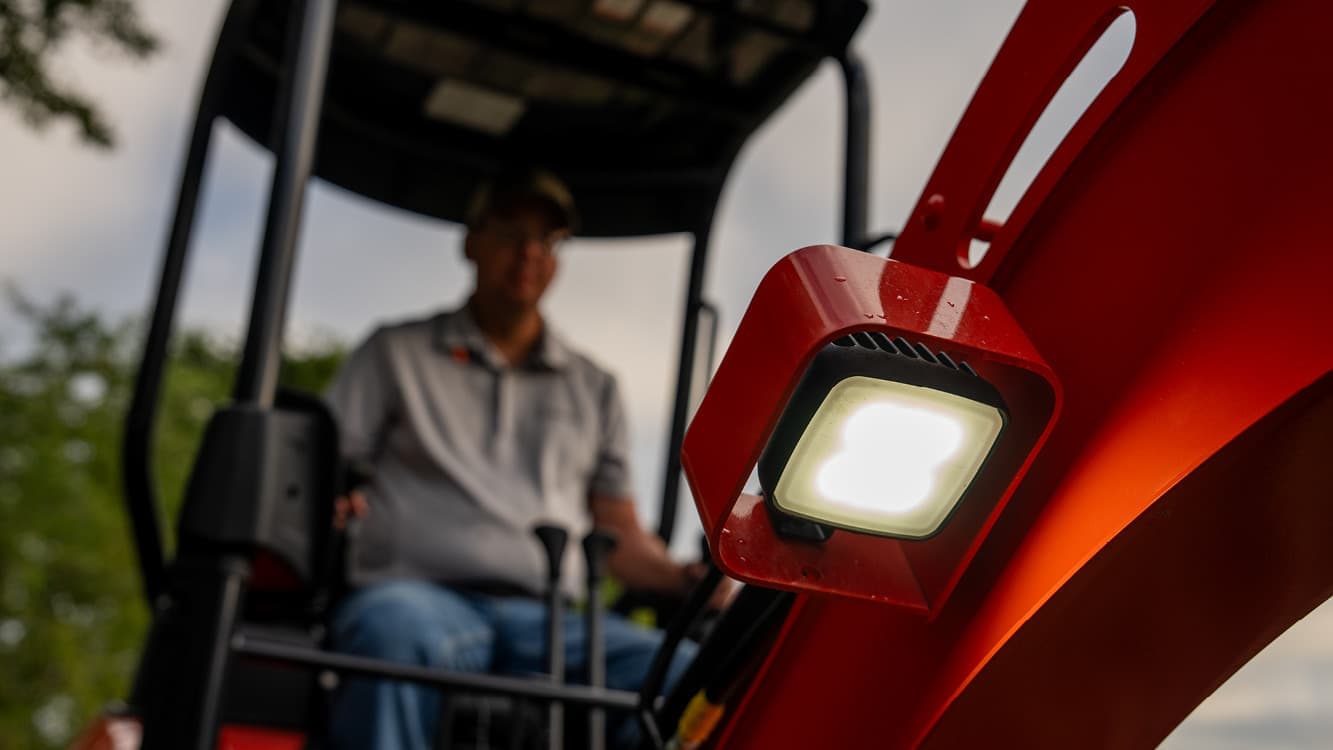

LED Boom Lights for Brighter Job Sites
Illuminate your job site with an LED boom light to improve your visibility when digging or using attachment in dark areas.

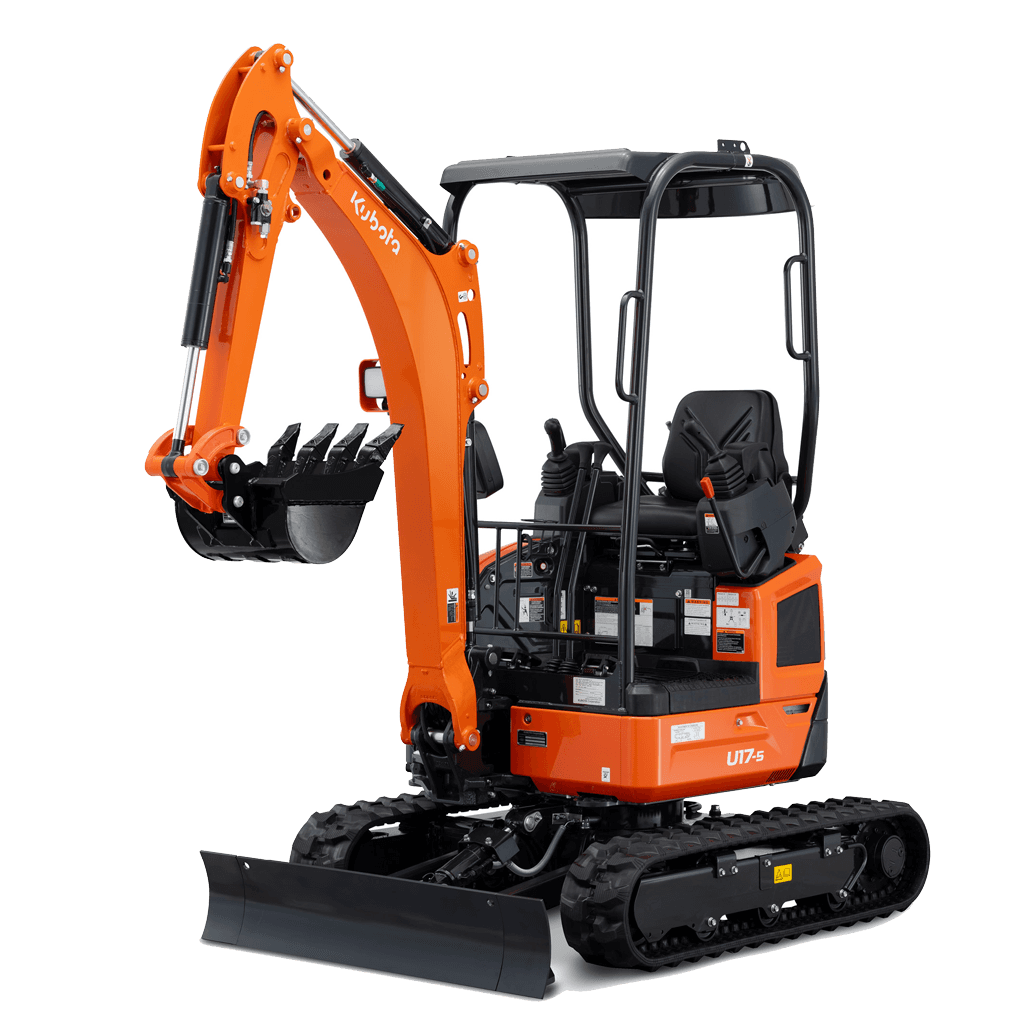

U17-5 Specs
Model nameU17-5
TypeCanopy
MakeKubota
ModelD902-E4-BH-6EU
Output (SAE J1995 gross)12 kW / 16.1 HP
Output (SAE J1349 net)11.3 kW / 15.1 HP
Rated engine speed2300 rpm / 2300 rpm
Displacement898 cc / 54.8000 cu. in.
TypeRubber
Overall length3550 mm / 139.7 in
Overall height2370 mm / 93.3 in
Overall width1300 mm / 51.2 in
Ground clearance155 mm / 6.1 in
Blade
Width1300 mm / 51.2 in
Height260 mm / 10.2 in
Maximum lift above ground280 mm / 11 in
Maximum drop below ground205 mm / 8.1 in
Operating weight
Including operator’s weight @ 175 lbs.1770 kg / 3902 lb
Pump capacity17.3 l / min / 4.6 gpm
Breakout force
Bucket1609 kgf / 15.8 lbf
Arm887.2 kgf / 8.7 lbf
Travel speed
Low2.3 km / h / 1.4 mph
High4.4 km / h / 2.7 mph
Tumbler distance1230 mm / 48.4 in
Crawler length1580 mm / 62.2 in
Shoe width230 mm / 9 in
Ground contact pressure0.29 kg / cm2 / 4 psi
Unit swing speed9.4 rpm / 9.4 rpm
Boom swing angle
Left63 deg / 63 deg
Right58 deg / 58 deg
Hydraulic Oil
Reservoir13 l / 3.4 gal
System21.8 l / 5.8 gal
Fuel
Reservoir20 l / 5.3 gal
