Features

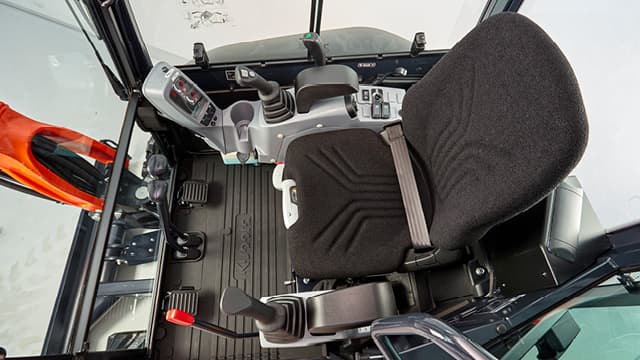

Comfort & convenience
A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, digital panel with easy access, simple settings and easy-to-read...

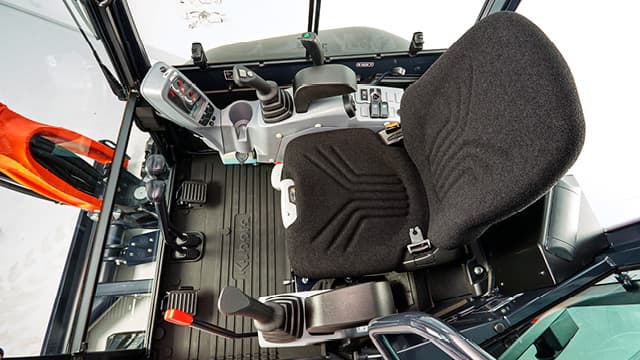

Front meter panel
For better visibility and accessibility, the meter panel is positioned to the right front corner of the operator station. With easier access, simpler settings,...
AUX diverter valve
The diverter valve allows auxiliary oil to be diverted to operation of auxiliary attachments without the removal of the thumb attachment pipeline for increased efficiency...

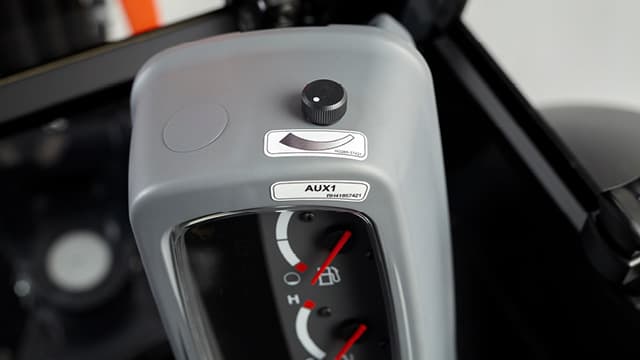

Proportional control of AUX circuit
The thumb- operated switch on the right joystick allows easy proportional flow control of the AUX circuit. And, with the small dial on top...

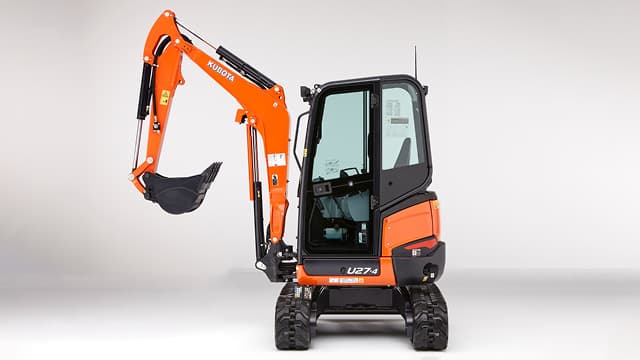

Tight tail swing
The U7-4's tight tail swing proves to be highly versatile when operating in confined conditions. There is less chance for damage to the machine...

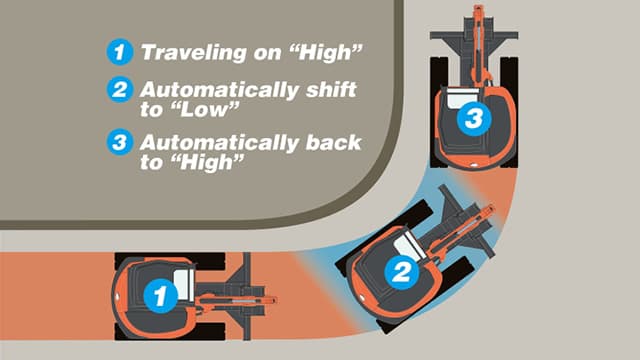

Auto shift down
The U27-4 auto-shift automatically shifts travel speed from high to low, depending on traction and terrain, allowing smoother operation when dozing and turning.

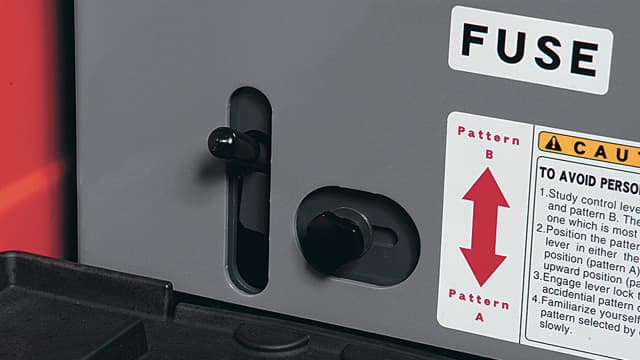

Two-Pattern Selector System (TPSS)
The Two-Pattern Selection System positioned under the seat allows the operator to shift control styles conveniently while seated. A simple turn of a switch is...

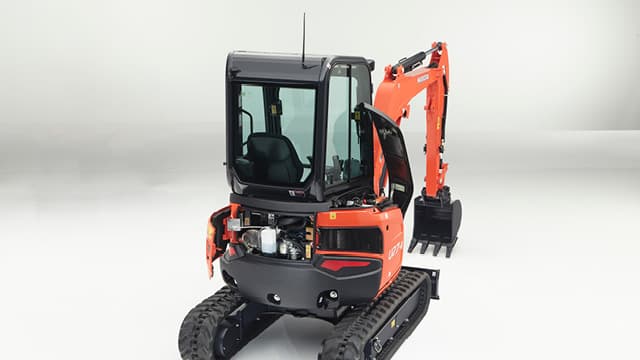

Serviceability
Front pin bushings to help maximize durability, centralized swivel bearing lubrication, protected cylinder hoses, steel hood panels, one-sided engine maintenance, and wide hood openings for...
U27-4 Specs
Model nameU27-4
ModelD1105-BH
MakeKubota
Rated engine speed2400 rpm / 2400 rpm
Displacement1123 cc / 68.5000 cu. in.
Output (SAE J1995 gross)15.5 kW / 20.8 HP
Output (SAE J1349 net)14.9 kW / 20 HP
Pump capacity28.8 l / min / 7.6 gpm
Breakout force
Bucket3180 kgf / 7014 lbf
Arm1260 kgf / 2777 lbf
Ground clearance307 mm / 12.1 in
Overall height2420 mm / 95 in
Overall length4100 mm / 162 in
Overall width1500 mm / 59 in
Blade
Width1500 mm / 59 in
Height300 mm / 11.8 in
Max. lift above ground360 mm / 14.2 in
Max. drop below ground320 mm / 12.6 in
Operating weight
Including operator’s weight @ 175 lbs.2580 kg / 5688 lb
TypeRubber
Travel speed
Low2.6 km / h / 1.6 mph
High4.3 km / h / 2.7 mph
Max. traction force3069 kgf / 6767 lbf
Crawler length1990 mm / 78.3 in
Shoe width300 mm / 11.8 in
Ground contact pressure0.23 kg / cm2 / 3.32 psi
Tumbler distance1560 mm / 61.4 in
Unit swing speed9.9 rpm / 9.9 rpm
Boom swing angle
Left75 deg / 75 deg
Right55 deg / 55 deg
Hydraulic Oil
Reservoir22 l / 5.8 gal
System37 l / 9.7 gal
Fuel
Reservoir33 l / 8.7 gal
TypeCanopy
