Features
Spacious & comfortable Cab
With new interior designs, the cabs offer improved comfort for operators of any size. The designs feature a slimmer, more ergonomically positioned right meter panel,...

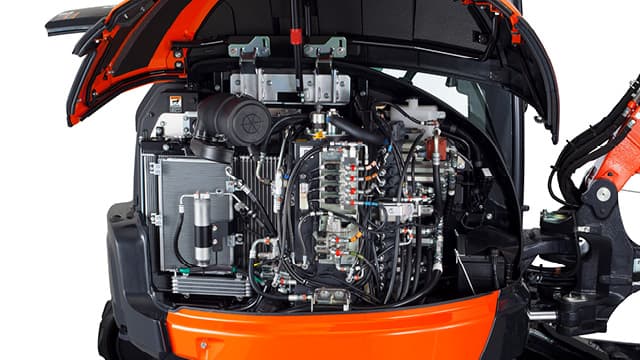

New stage V engine
Exceed Tier IV Final parameters with Auto Idle and superior performance. This new direction-injection engine comes equipped with clean engine technology for easier maintenance.

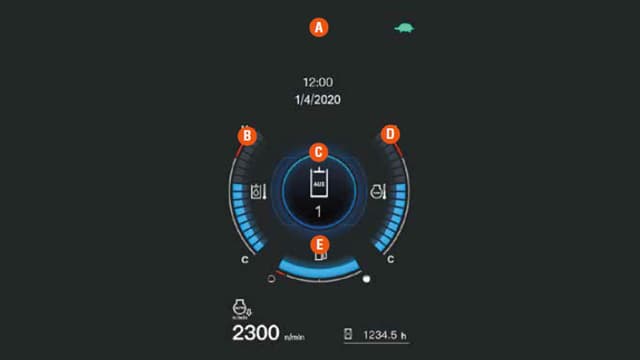

Enhanced LCD screen
A full-colour 7” LCD screen provides a quick look into all the crucial information and data you need to operate the U55-5 at a higher...

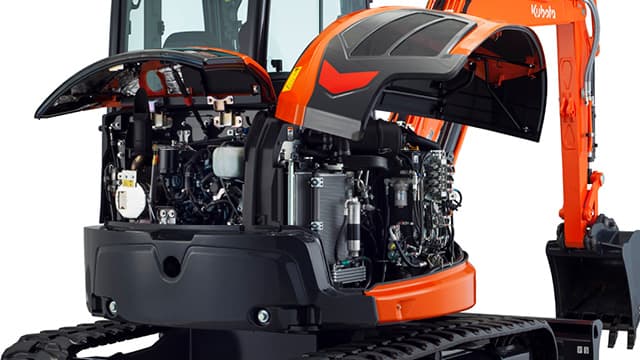

Easy to service
A fully opening bonnet and optimum arrangement of internal parts allow quick and efficient service and shorter downtime. The U55-5 also features a two-piece hose...

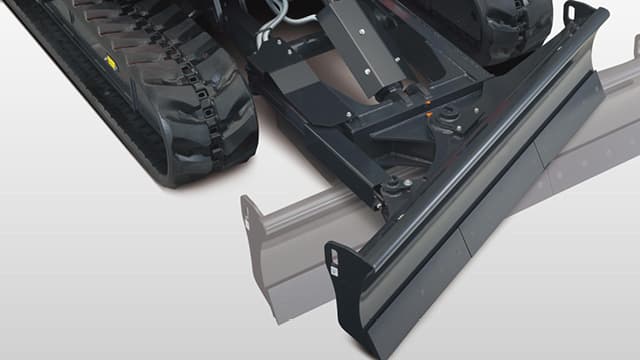

Angle blade option
The angle blade provides easier trench backfilling, and the float position provides better back grading.

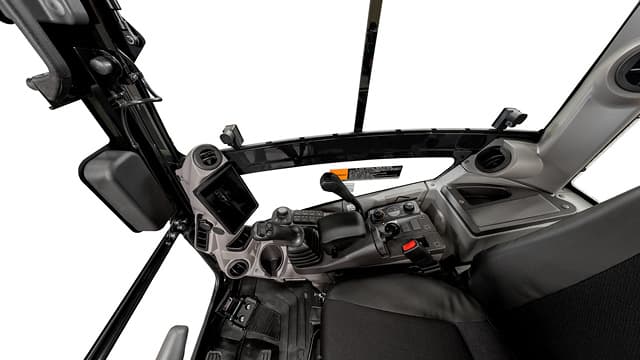

Adjustable/proportional aux oil flow
The max oil flow settings of both circuits are conveniently adjustable from the LCD panel — no additional tools or manual procedures necessary. Program up...

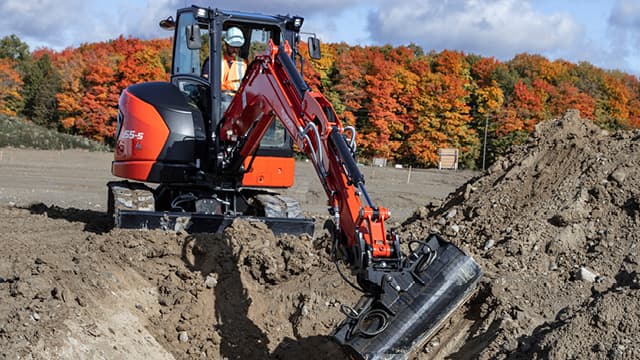

Advanced features
Employ features like LED light delay turn off for added operator safety, keyless start, and a radio ready configuration. Plus, this unit is rearview camera...

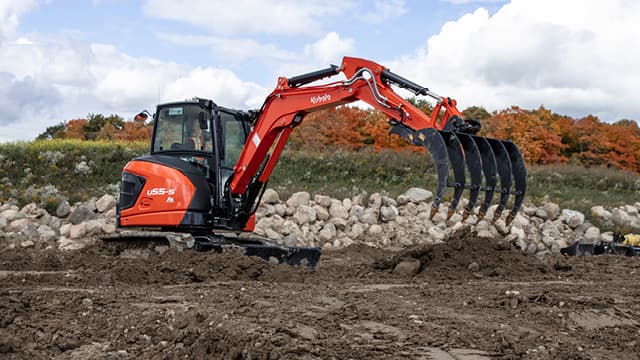

Quality bucket and attachment options
Load up your U55 with our selection of options: Trenching & Ditching Buckets, Rakes, Rippers, Hydraulic Breakers and much more!
U55-5 Specs
Model nameU55-5
ModelV2607-CR-E5-BH1
MakeKubota
Rated engine speed2200 rpm / 2200 rpm
Displacement2615 cc / 159.6000 cu. in.
Output (SAE J1995 gross)35.5 kW / 47.6 HP
Output (SAE J1349 net)34.6 kW / 46.4 HP
Pump capacity56.1 l / min / 14.8 gpm
Breakout force
Bucket4614 kgf / 10172 lbf
Arm2662 kgf / 5869 lbf
Auxiliary hydraulic flow
Aux 175 l / min / 19.8 gpm
Aux 237 l / min / 9.8 gpm
Ground clearance310 mm / 12.2 in
Overall height2550 mm / 100.4 in
Overall length5415 mm / 216 in
Overall width1960 mm / 77.2 in
Blade
Width1960 mm / 77.2 in
Height410 mm / 16.1 in
Maximum lift above ground440 mm / 17.3 in
Maximum drop below ground405 mm / 15.9 in
Operating weight
Including operator’s weight @ 175 lbs.5555 kg / 12247 lb
TypeRubber / Steel
Travel speed
Low2.8 km / h / 1.8 mph
High4.9 km / h / 3.1 mph
Maximum traction force6567 kgf / 14480 lbf
Crawler length2500 mm / 98.4 in
Shoe width400 mm / 15.7 in
Ground contact pressure0.33 kg / cm2 / 4.6 psi
Tumbler distance1990 mm / 78.3 in
Unit swing speed9.2 rpm / 9.2 rpm
Boom swing angle
Left70 deg / 70 deg
Right55 deg / 55 deg
Hydraulic Oil
Reservoir41.9 l / 11.1 gal
System77 l / 20.3 gal
Fuel
Reservoir66 l / 17.4 gal
TypeCanopy / Cab
