Features

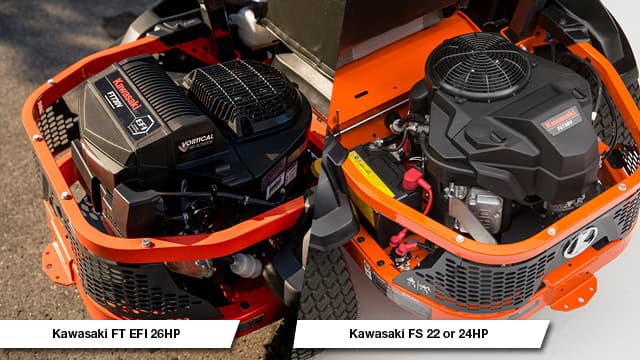

Commercial-grade mowing at home

Commercial-grade mowing at home

Powered by a Kawasaki FS carbureted or FT EFI engine and Hydro-Gear 3600 transmission, the Z400’s commercial-grade drivetrain offers strength and reliability for years to...

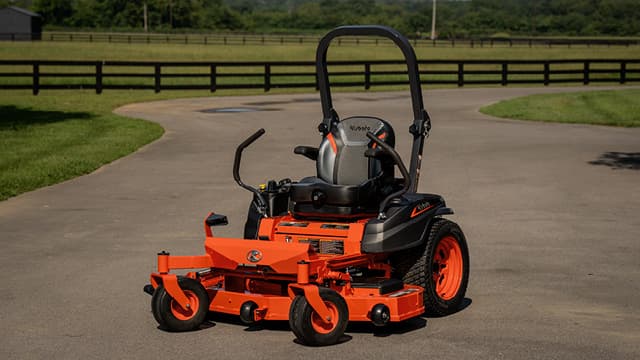

Sit back and mow in comfort

Sit back and mow in comfort

Say goodbye to uncomfortable mowing. The Z400’s deluxe high-back suspension seat and patented vibration-reducing technology ensures a smooth, fatigue-free ride.

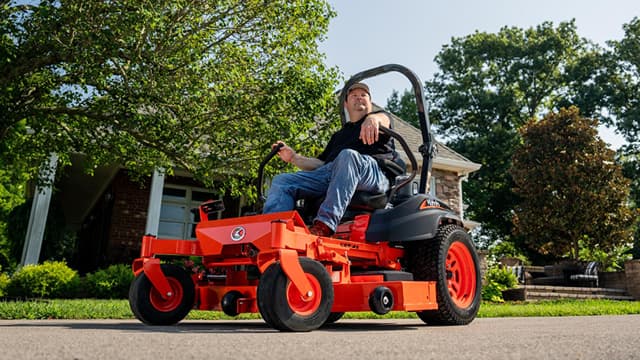

Tailored to you for maximum control

Tailored to you for maximum control

The Z400 was designed with your comfort in mind, with fully adjustable controls for maximum ergonomic support. Operators can slide their seat forward or backward...

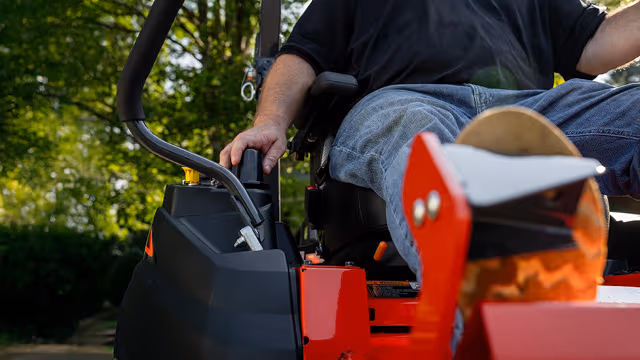

One push deck lift

One push deck lift

The K-Lift system allows for quick and effortless adjustment of the cutting height. Simply press the pedal, turn the adjustment dial to the desired cutting...

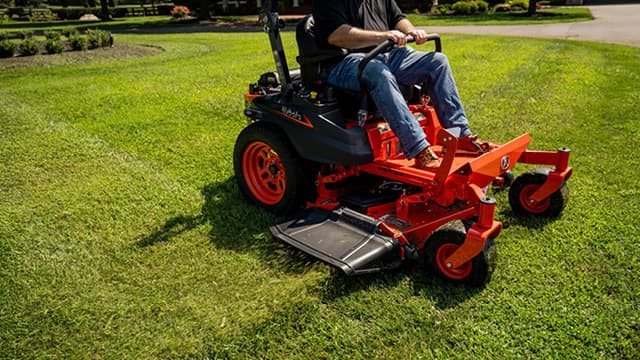

Precision crafted for a flawless cut

Precision crafted for a flawless cut

The Z400’s 5” deep, 10 gauge fabricated mower deck is engineered for strength and durability, while delivering consistently high-quality cuts. Make your lawn the envy...

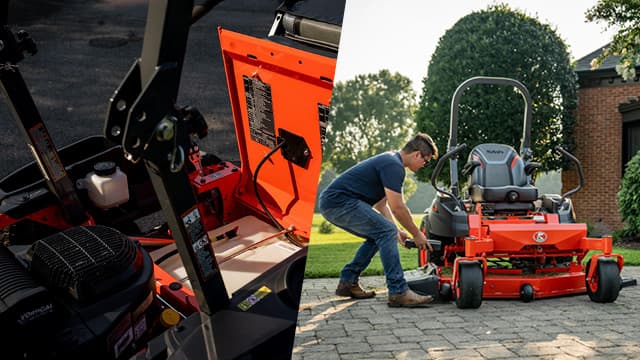

Built for easy maintenance

Built for easy maintenance

Keeping your Z400 in peak condition is simple. You can quickly perform maintenance and cleaning with tool-less mower deck access and a flip-up seat. No...

Everything you need, within reach

Everything you need, within reach

The Z400’s operator station is designed for convenience. With a built-in cupholder, 12V charger, storage pocket, and intuitive controls, everything you need is at your...

Downloads

Z400-3 Series
Orange Plus – Residential Equipment

Z422KWT-60

Build your Own
Z422KWT-60

Z422KWT-60

Zero Turn Mowers

3 years Warranty

Z422KWT-60

Build your OwnRequest A Quote

Z422KWT-60

Zero Turn Mowers

3 years Warranty

Build your Own
Request A Quote

Z422KWT-60 Specs

Model name
Model nameZ422KWT-60
Model
ModelGH7301V
Type
TypeAir cooled 2 cylinders gasoline engine
Make
MakeKawasaki
Displacement
Displacement726 cc / 44.3000 cu. in.
Safety starting system
Safety starting systemKey switch
Engine gross power
Engine gross power17.9 kW / 24 HP
Type
TypeBelt drive
Clutch
ClutchElectric clutch
PTO brake
PTO brakeDry disc
Overall length
Overall length2055 mm / 80.9 in
Wheelbase
Wheelbase1255 mm / 49.4 in
Overall height
Top of Open Station
Top of Open Station1772 mm / 69.8 in
Top of Open Station - folded position
Top of Open Station - folded position1265 mm / 49.8 in
Overall width
With mower
With mower1870 mm / 73.6 in
Without mower
Without mower1376 mm / 54.2 in
Weight
With mower
With mower410 kg / 904 lb
Battery
BatteryU1 (12V, RC : 45min, CCA : 300, CA : 410)
Generator
Generator15 A / 15 A
Front
Front944 mm / 37.2 in
Rear
Rear1070 mm / 42.1 in
Type
TypeHydro-Gear® Commercial ZT3600®
System
System2-HST w / Gear reduction
Speed control
System
System2-hand lever
Forward
Forward16 km / h / 10 mph
Reverse
Reverse8 km / h / 5 mph
Model
ModelRCK60P-400Z
Type
TypeSide discharge
Lift system
Lift systemMechanical / Foot pedal
Mower deck depth
Mower deck depth127 mm / 5 in
Belt type
Belt typeBelt drive
Mower deck thickness
Mower deck thickness3.4 mm / 0.14 in
Type anti-scalp rollers
Type anti-scalp rollersRigid
Cutting width
Cutting width1524 mm / 60 in
Number of blades
Number of blades3
Cutting height
Cutting height127 mm / 5 in
Mounting method
Mounting methodParallel linkage
Blade tip speed
Blade tip speed5577.84 m / min / 18300 fpm
Seat
SeatDeluxe seat w / 3 inch stroke suspension
Hour meter
Hour meterStandard
Fuel gauge
Fuel gaugeSight window
Engine stop system
Engine stop systemKey stop
Fuel tank capacity
Fuel tank capacity25.7 l / 6.8 gal
Brakes
Type
TypeCog style parking lock / Foot pedal
Standard tire size
Front
Front13 × 6.5 – 6
Rear
Rear24 × 12.0 –14
Type
Front
FrontSmooth pneumatic
Rear
RearLow profile tire
