Plate Compactors
PC Series
Plate Compactors
PC Series
Plate Compactors for 1.5 to 10-ton excavators are ideal for trench, slope, and excavation compaction. These hydraulically operated Kubota vibratory compactors feature 2,000 cycles and use an eccentric, rotating weight that creates the impulse energy. Excavator Quick Attach mounts are available to match Kubota excavators. Only available through Kubota Dealers.
Videos
Plate Compactors
Features

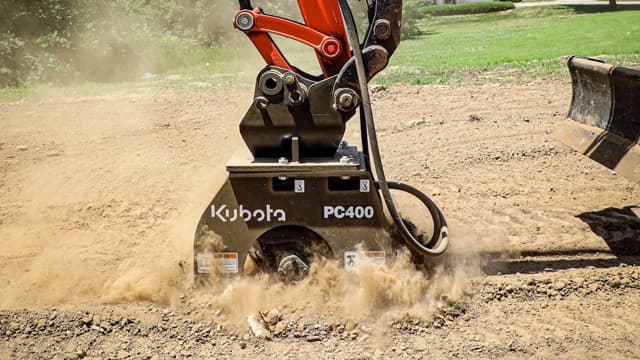

Rotating weight
These hydraulically operated vibratory compactors feature 2,000 cycles and use an eccentric, rotating weight that creates the impulse energy.

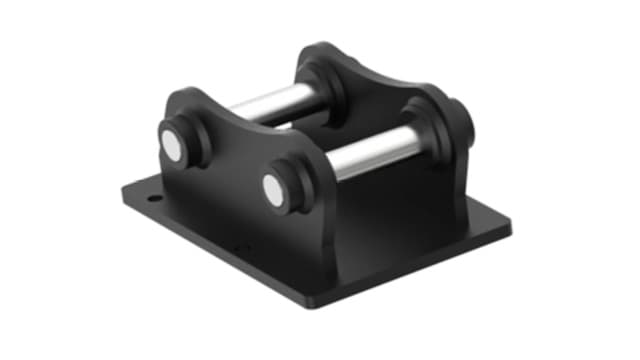

Optional mounts
Excavator Quick Attach mounts are available to match Kubota excavators.

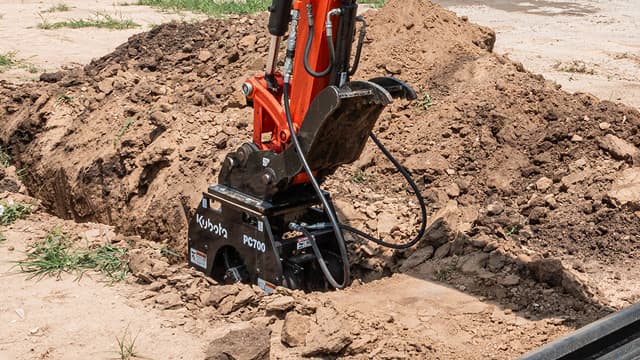

Four-function valve
Four-function valve controls flow, pressure, regeneration, and oil flow direction.

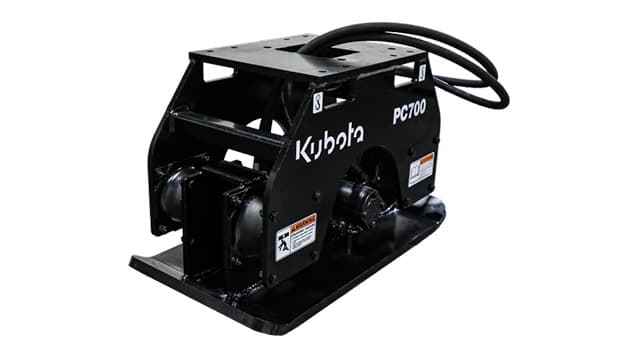

Sealed bearings
Sealed bearings for maintenance-free lubrication.
Models
PC400
Impulse Force:
4,000 (17,793)
Cycles:
2,000
Compact Plate Size:
13 x 25 (33 x 64)
Compaction Area:
2.3 (0.21)
PC700
Impulse Force:
6,400 (28,470)
Cycles:
2,000
Compact Plate Size:
18 x 27 (46 x 69)
Compaction Area:
3.4 (0.3)
PC1000
Impulse Force:
8,000 (35,586)
Cycles:
2,000
Compact Plate Size:
24 x 28 (61 x 71)
Compaction Area:
4.7 (0.43)
