Features

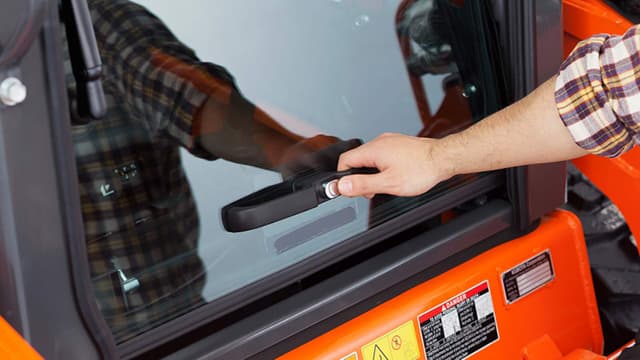

Widest Cab in the market with roll-up door
The wider cab entrance, with a 36” side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. When coupled with a...

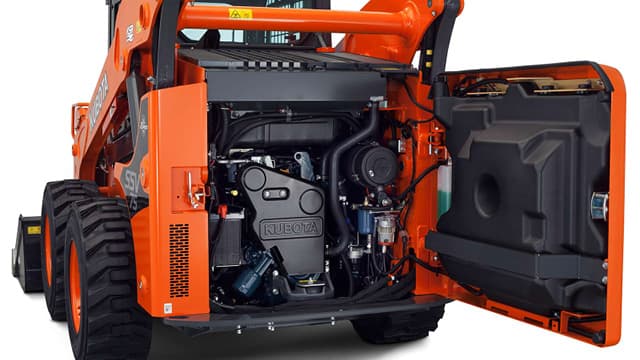

Easy maintenance
Fuel tank mounted inside heavy duty rear door to promote easy maintenance. The unique design of mounting the fuel tank on the rear door results...

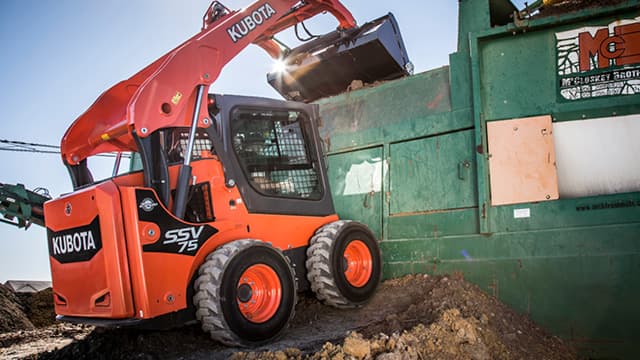

Vertical lift loader arms
Borrowed from Kubota’s Compact Track Loaders, this proven loader arm design with vertical geometry can push and dig as good as a radial machine. It’s...

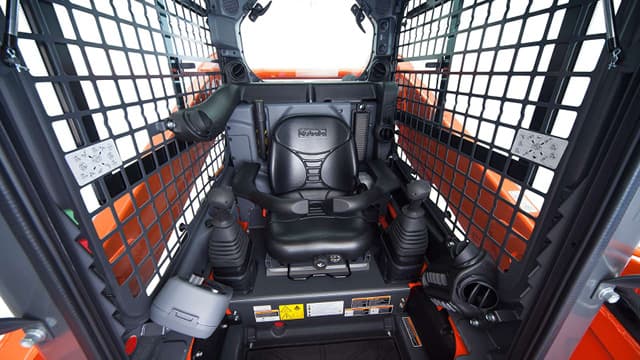

Standard 2-speed and suspension seat
Standard two-speed travel Shift from low gear at 6.9 mph (SSV65) / 7.4 mph (SSV75) to high gear at 11.1 mph (SSV65) / 11.8 mph...
KSR Kubota shockless ride and self levelling option
KSR helps minimize fatigue by “smoothing out” the ride. You’ll appreciate KSR when carrying heavy loads over rough terrain on the farm or at a...

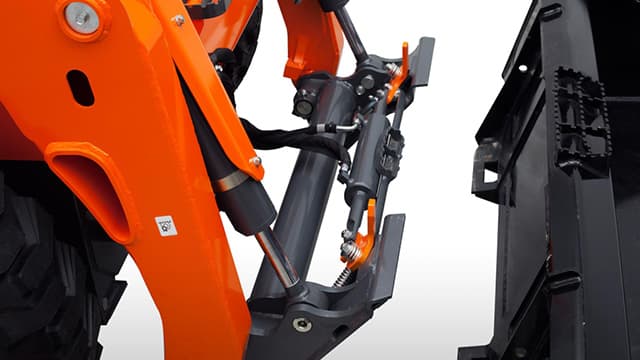

Hydraulic Skid Steer coupler option
An optional Hydraulic quick coupler is available. You can attach or remove attachments using a switch without leaving the seat.

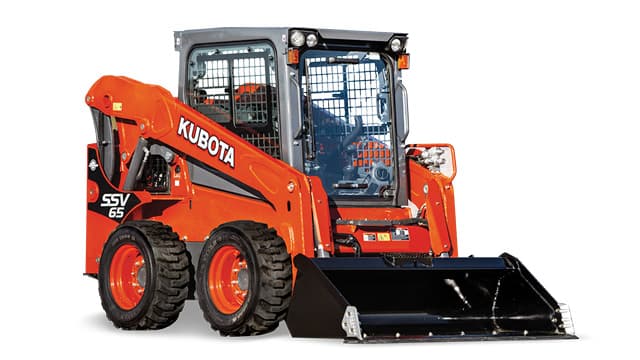

High flow hydraulics with 14 pin connector option
The optional high-flow hydraulics system can handle attachments requiring extra hydraulic power. With high-flow hydraulics, the standard hydraulic flow increases from 18.0 gpm to 28.0...

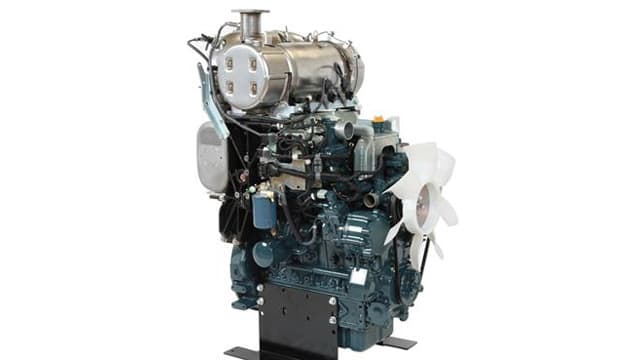

Reliable Kubota engines
A loyalty hallmark, Kubota Engines have proven their worth time and time again. Kubota is the largest manufacturer of under-100 HP engines. You can find...
SSV75 Specs
Model nameSSV75
TypeOpen CAB / Closed CAB
AspirationTurbocharged
Bore94 mm / 3.8 in
Stroke120 mm / 4.8 in
Rated engine speed2600 rpm / 2600 rpm
Engine gross horsepower @ rpm54.59 kW / 73.2 HP
Displacement3331 cc / 203.3000 cu. in.
Emission certificationTier 4
Model nameV3307-CR-TE4
Cylinders4
Ground clearance207 mm / 8.1 in
Operating weight3840 kg / 8466 lb
Fuel tank capacity102 l / 26.9 gal
Hydraulic tank16 l / 4.2 gal
Travel speed
Low11.9 km / h / 7.4 mph
High19 km / h / 11.8 mph
Maximum traction force3853 kgf / 8494 lbf
Tire size12-16.5-10PR
Chain size ASA#100
Rated operating capacity (SAE)
Tipping load. 50%1220 kg / 2690 lb
Tipping load. straight2440 kg / 5380 lb
Lift arm pathVertical
Breakout force
Bucket2669 kgf / 5884 lbf
Lift arm2200 kgf / 4850 lbf
Loader
Total hydraulic flow79 l / min / 20.9 gpm
Auxiliary hydraulic pressure230 kg / cm2 / 3271 psi
Auxiliary hydraulic flow
Standard79 l / min / 20.9 gpm
High115 l / min / 30.4 gpm
