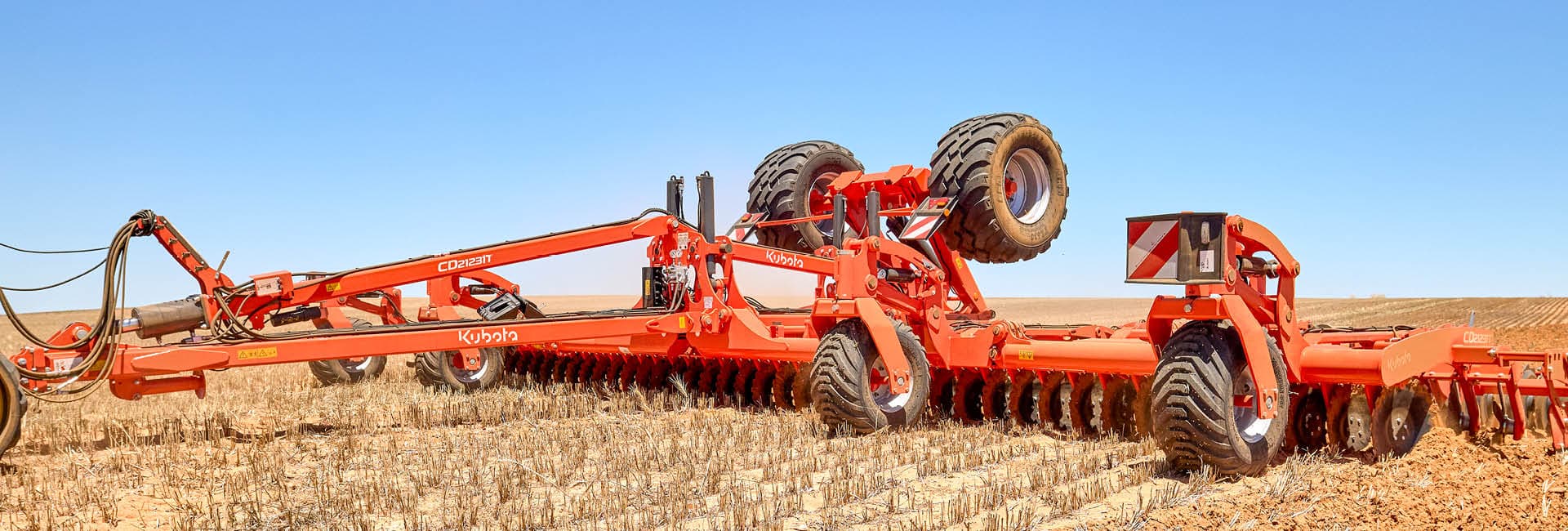

Time is valuable and, for farmers in Canada, often a luxury. The Kubota CD is your choice for a high-speed compact disc—now available in working widths up to 12m—helping you work faster and reclaim some of that valuable time. Designed for Controlled Traffic Farming and built for productivity, the CD range delivers full cutting performance, intensive mixing, perfect levelling, and reconsolidation. Available in rigid-mounted, mounted-fold, folding trailed, and large-scale trailed configurations, the Kubota CD gives you more choice, more working width, and more efficiency than ever.
Videos
Kubota High Speed Compact Disc Harrows: Impeccable full cutting quality - speed without sacrifice.
NEW CD20001T
Features

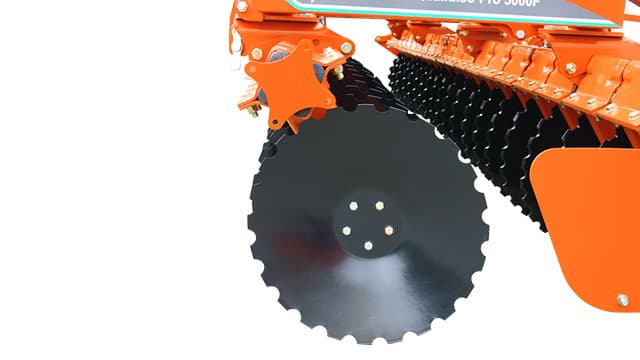

Conical discs
The conical discs on the CD provide a perfect cutting angle and ideal penetration even in tough conditions and maintain this high level of performance...

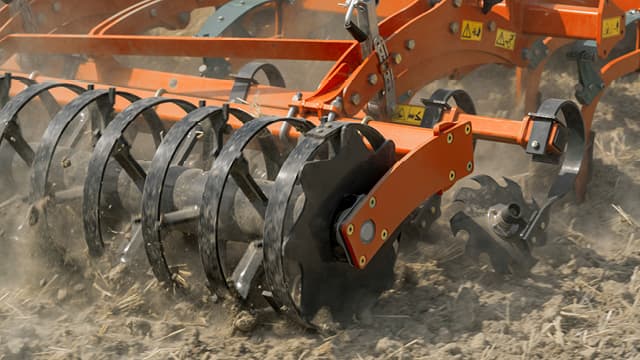

Maintenance-free bearings
High quality maintenance-free bearings with 5-lip seals are used on each disc. These bearings have been specially designed to carry heavy radial and axial loads...

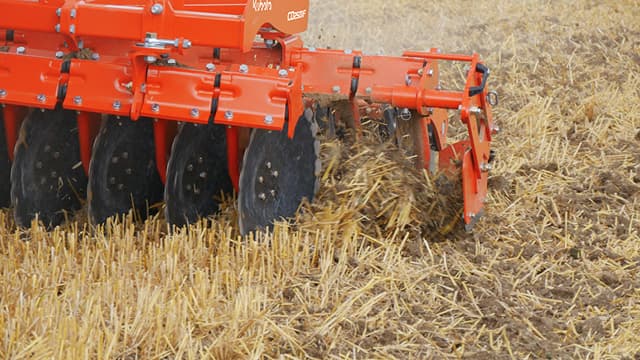

Torsion springs
Rubber torsion springs on the individual disc arms absorb any shocks and keep the discs working where you need them. They also provide a forgiving...

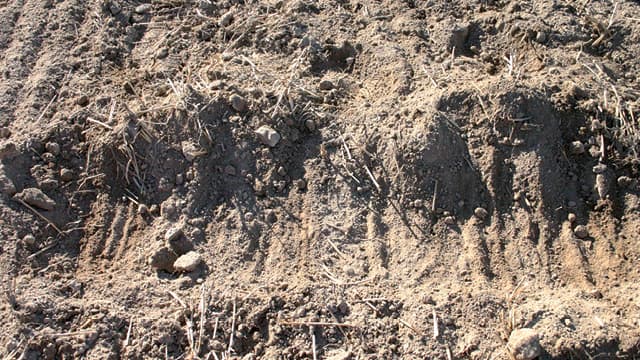

Lateral adjustment
The lateral adjustment feature on the CD2001 allows for front row of discs to be adjusted laterally as they wear maintaining perfect full-cut performance. By...

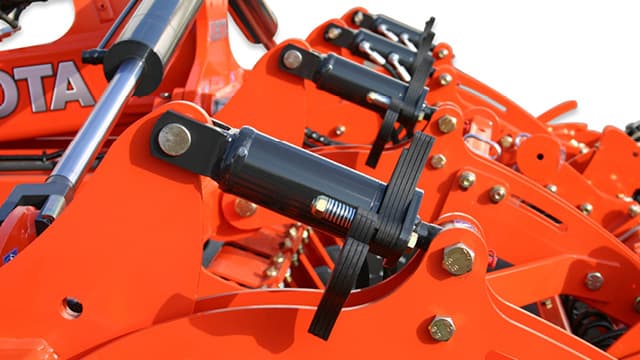

Field adjustments
All field adjustments on the Kubota CD's can be made without tools. Spacers on the hydraulically operated rollers allow simple machine leveling and depth positioning....

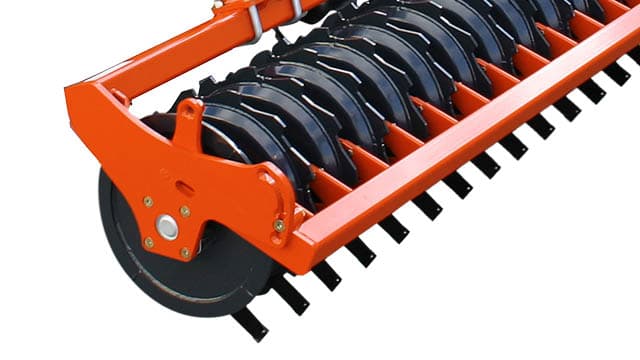

Actipack Roller - for medium to heavy soils
The Actipack roller displays its superb working qualities especially on medium to heavy soils and also in wet, stony and sticky conditions thanks to the...

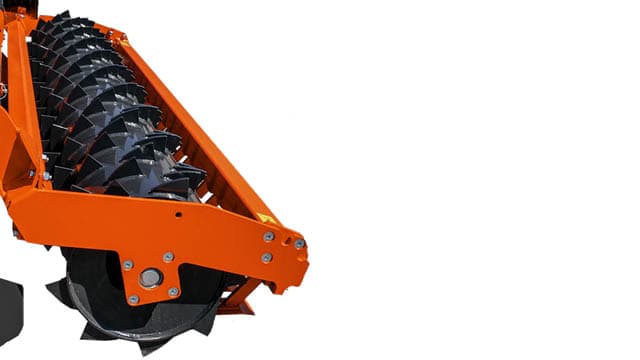

Tooth Packer Roller - for medium to heavy soils
Optimum performance on medium to heavy soils with a good carrying capacity and self-cleaning effect. Carbide scrapers provide effective cleaning and the scraper bar can...

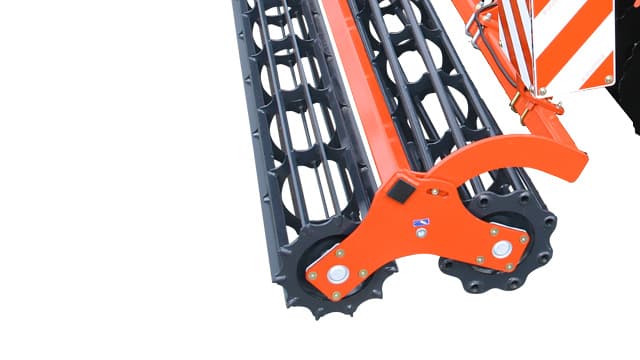

Single & Double cage rollers - for light to medium soils
10 round bars on the single cage roller ensures a good loading capacity and effective crumbling actions even in wet conditions. A combination of round...

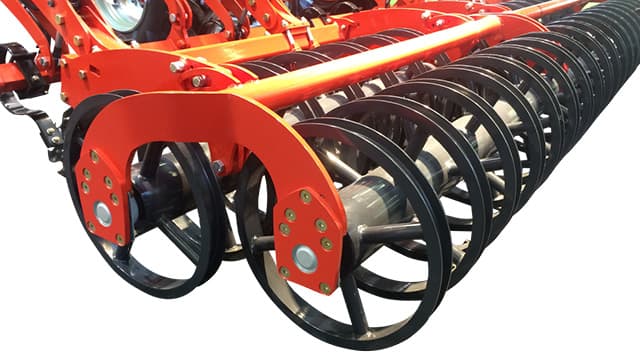

Actipress Twin - light to medium soils
The u-profile ensure high carrying/rolling capactiy and self-cleaning effect especially for light soils. Due to the fact that there is no direct compaction as it...

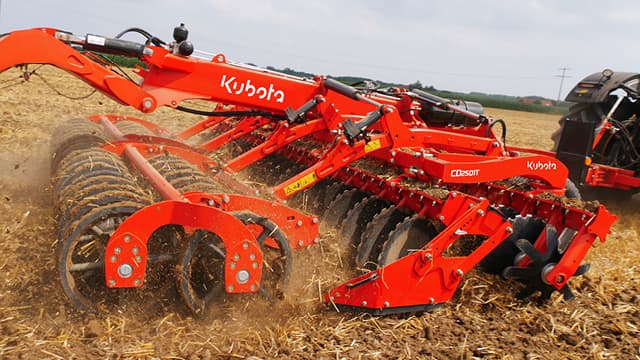

Lateral side deflectors
Lateral sides deflectors ensure the intensive mixing of soil and crop residues are kept within the working width of the CD to provide perfect leveling...

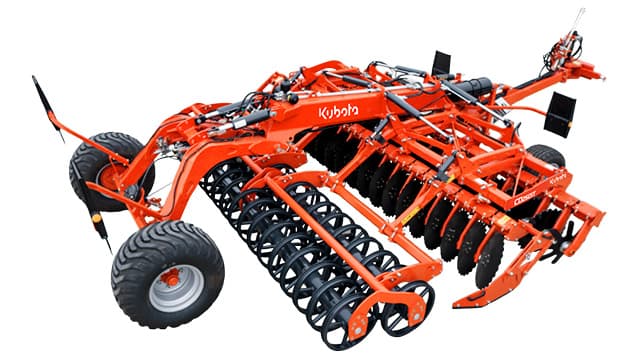

Suspension system
Trailed CD's are equipped with a hydraulic suspension system. The dampening of loads in the field ensure the CD is always engaged at the right...

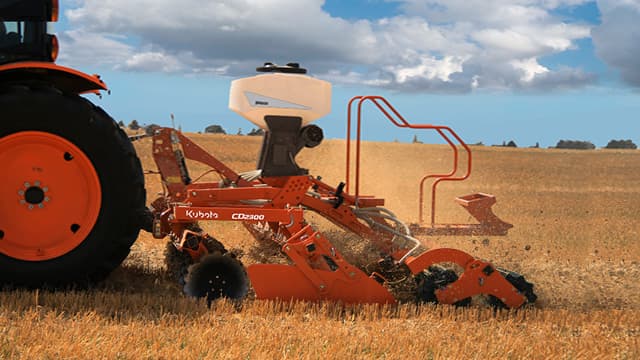

Integrated seeding option
The Kubota SH200 & SH500 seeders are available for all CD models and can be easily mounted providing as an integrated seeding solution. They transform...

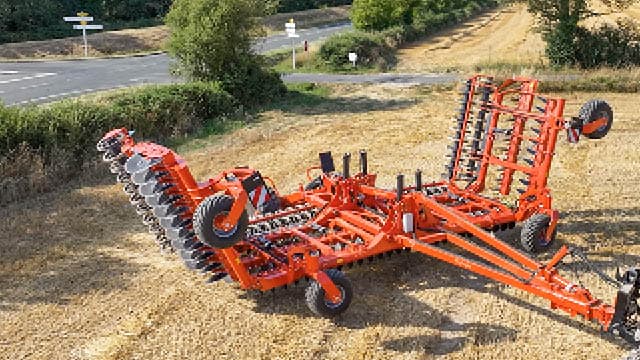

Sustainable precision farming
The new CD20001T series is built for big acreage, big productivity, and big expectations. With working widths of 10m and 12m, these trailed models are...
Models
CD1201
Frame:
Mounted Rigid
Working Width:
6'7" (2.0 m)
Min/Max:
50.0/100.0 HP
CD1251
Frame:
Mounted Rigid
Working Width:
8'2" (2.5 m)
Min/Max:
55.0/120.0 HP
CD1301
Frame:
Mounted Rigid
Working Width:
9'10" (3.0 m)
Min/Max:
70.0/150.0 HP
CD1351
Frame:
Mounted Rigid
Working Width:
11'6" (3.5 m)
Min/Max:
90.0/180.0 HP
CD1401
Frame:
Mounted Rigid
Working Width:
13'1" (4.0 m)
Min/Max:
110.0/200.0 HP
CD1401F
Frame:
Mounted Fold
Working Width:
13'1" (4.0 m)
Min/Max:
110.0/200.0 HP
CD1501F
Frame:
Mounted Fold
Working Width:
16'5" (5.0 m)
Min/Max:
130.0/250.0 HP
CD1601F
Frame:
Mounted Fold
Working Width:
19'8" (6.0 m)
Min/Max:
150.0/300.0 HP
CD1401T
Frame:
Trailed
Working Width:
13'1" (4.0 m)
Min/Max:
130.0/220.0 HP
CD1501T
Frame:
Trailed
Working Width:
16'5" (5.0 m)
Min/Max:
150.0/260.0 HP
CD1601T
Frame:
Trailed
Working Width:
19'8" (6.0 m)
Min/Max:
170.0/300.0 HP
CD2201
Frame:
Mounted Rigid
Working Width:
6'7" (2.0 m)
Min/Max:
50.0/160.0 HP
CD2251
Frame:
Mounted Rigid
Working Width:
8'2" (2.5 m)
Min/Max:
70.0/180.0 HP
CD2301
Frame:
Mounted Rigid
Working Width:
9'10" (3.0 m)
Min/Max:
90.0/200.0 HP
CD2351
Frame:
Mounted Rigid
Working Width:
11'6" (3.5 m)
Min/Max:
110.0/220.0 HP
CD2401
Frame:
Mounted Rigid
Working Width:
13'1" (4.0 m)
Min/Max:
130.0/240.0 HP
CD2401F
Frame:
Mounted Fold
Working Width:
13'1" (4.0 m)
Min/Max:
150.0/250.0 HP
CD2501F
Frame:
Mounted Fold
Working Width:
16'5" (5.0 m)
Min/Max:
170.0/300.0 HP
CD2601F
Frame:
Mounted fold
Working Width:
19'8" (6.0 m)
Min/Max:
190.0/350.0 HP
CD2401T
Frame:
Trailed fold
Working Width:
13'1" (4.0 m)
Min/Max:
150.0/250.0 HP
CD2501T
Frame:
Trailed fold
Working Width:
16'5" (5.0 m)
Min/Max:
170.0/300.0 HP
CD2601T
Frame:
Trailed
Working Width:
19'8" (6.0 m)
Min/Max:
190.0/350.0 HP
CD2701T
Frame:
Trailed
Working Width:
22'11" (7.0 m)
Min/Max:
210.0/400.0 HP
CD21031T
Frame:
Trailed
Working Width:
32’8” (10.25 m)
Min/Max:
330.0/550.0 HP
CD21231T
Frame:
Trailed
Working Width:
40’3” (12.25 m)
Min/Max:
400.0/650.0 HP
